      TOMRA M1 reverse vending machine

      More compact than you think
      • Designed for convenience and small stores
      • Accepts cans
      • plastic bottles
      • and glass bottles
      • Footprint of 0
      • 61m²
      • Up to 17 containers per minute
      Details
      Standalone reverse vending machine
      Powered with TOMRA Flow™
      Fully compatible with the TOMRA Digital Solutions
      Specifications

      Dimensions

      Width (mm)
      960 mm
      Depth (mm)
      638 mm
      Height min (mm)
      1670 mm
      Height max (mm)
      1670 mm
      Height min-max (mm)
      1670
      Footprint (m2)
      0.61 m²
      Weight (kg)
      305 kg
      Infeed height min (mm)
      1186 mm
      Infeed height max (mm)
      1186 mm
      Infeed height min-max (mm)
      1186
      Adjustment range for height (mm) +25
      10 mm

      Storage Capacity

      Storage Capacity Plastic Bottles per bin (up to)
      270
      Storage Capacity Cans per bin (up to)
      550

      Environmental

      Humidity Max (%) Maximum 90% relative humidity, non-condensing
      90 %
      Temperature Min (C)
      10 °C
      Temperature Max (C)
      40 °C
      Temperature Min (C)
      none °C
      Temperature Max (C)
      none °C

      Electrical

      Power Consumption Max (kW)
      3 kW
      Power Consumption Standby (kW)
      0.057 kW
      Mains Voltage (V)
      230 V
      Mains Frequency (Hz)
      50 Hz
      Mains Phase
      single

      Standard Configuration

      Machine Type
      standalone
      Additional Machine Type Configuration
      none
      Adjustment Hight Included
      Yes
      Bin Unload Direction
      front
      End of lane configurations
      none
      Number of Cabinets
      1
      Number of Bins per cabinet
      2
      Compactor Included
      Yes
      Compactor type
      Mix crusher, Glass drop or Glass crusher
      Available Colors
      light_grey
      User Interface
      touchscreen, user_guiddance
      Display Included
      Yes
      Display Type
      touchscreen
      User Interface
      10.4’’ touch display, video and sound capabilities, user guidance on machine screen
      Display Size (inch)
      10.4
      Printer Included
      Yes
      Printer Type
      thermal

      Market

      Available Countries
      GLOBAL, AE, CZ, GB, IE, ES, FI, FR, IT, PT, SE, DE, AT, GR, HU, PL, RO, RS
      Placement Fit
      convenience_store

      Recognition

      Recognition Technology
      TOMRA Flow TechnologyTM (360º instant recognition, shape recognition, full container detection, barcode recognition, metal detection)
      Speed Capability (up to containers/min)
      17
      Accepted Containers
      plastic_bottles, aluminum_cans, glass_bottles

      Connectivity

      External IT Interface
      LAN (Ethernet TCP/IP), POS compatible
      Digital Tools
      Fully compatible with TOMRA’s portfolio of digital products and APIs
      Backroom Integration Supported
      No

      TOMRA M1 - More compact than you think

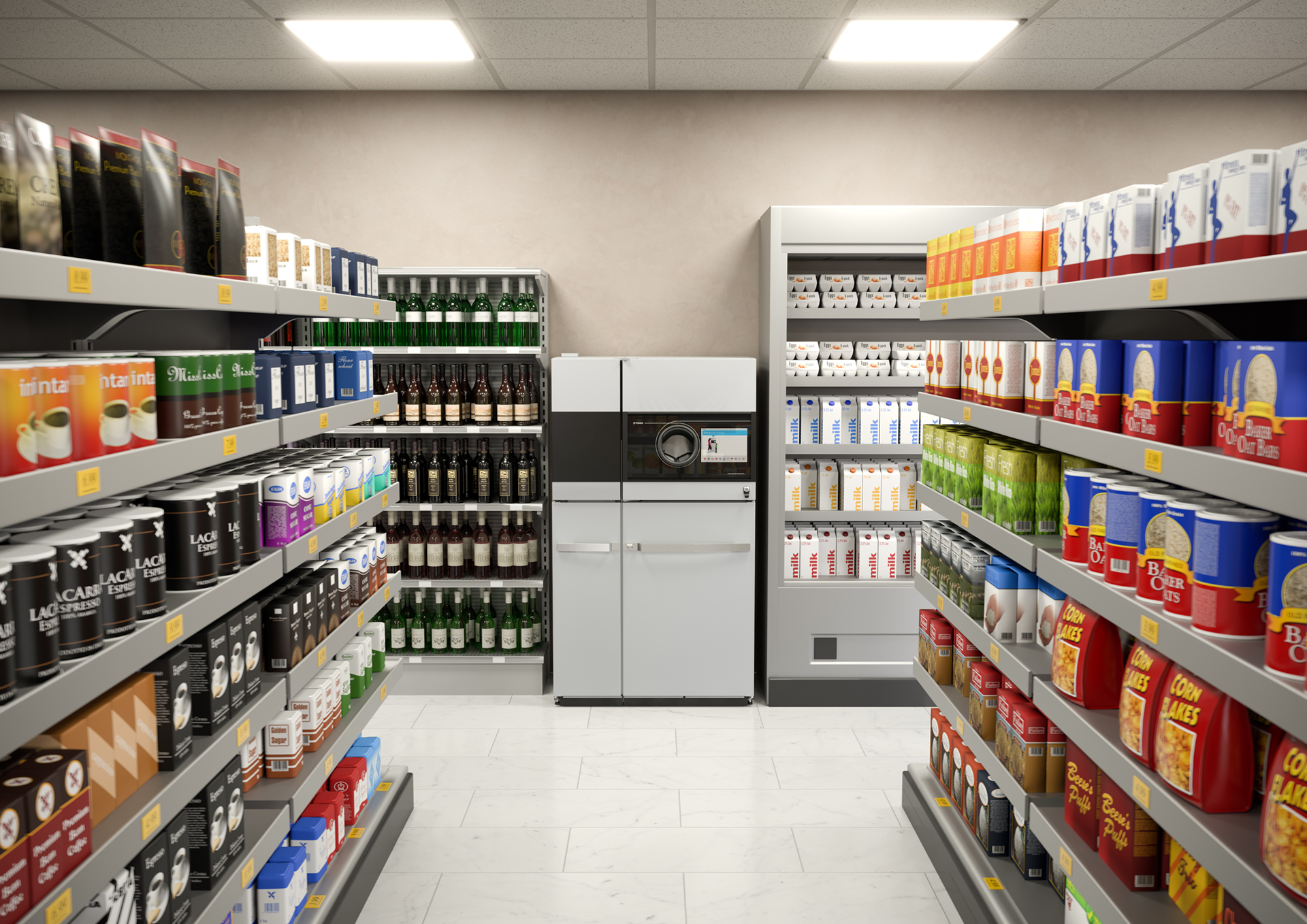

      A seamless fit for your store

      The smallest reverse vending machine on the market that can recognize, sort, and store glass, plastic, and aluminum containers. Designed to fit right in with your store’s shelves, the TOMRA M1 requires just 0,62 m², making it ideal for small or convenience stores.

      Let the TOMRA M1 handle recycling for you

      Optimal storage space and on-screen, step-by-step cleaning instructions for a mess-free alternative to manual handling, needing little time and attention so you can focus on your store.

      Less time redeeming means more time shopping

      Leave the work to the machine with its 360-degree, instant container recognition technology - TOMRA Flow™ - so customers can get to their shopping faster.

      Meet the TOMRA M1 family

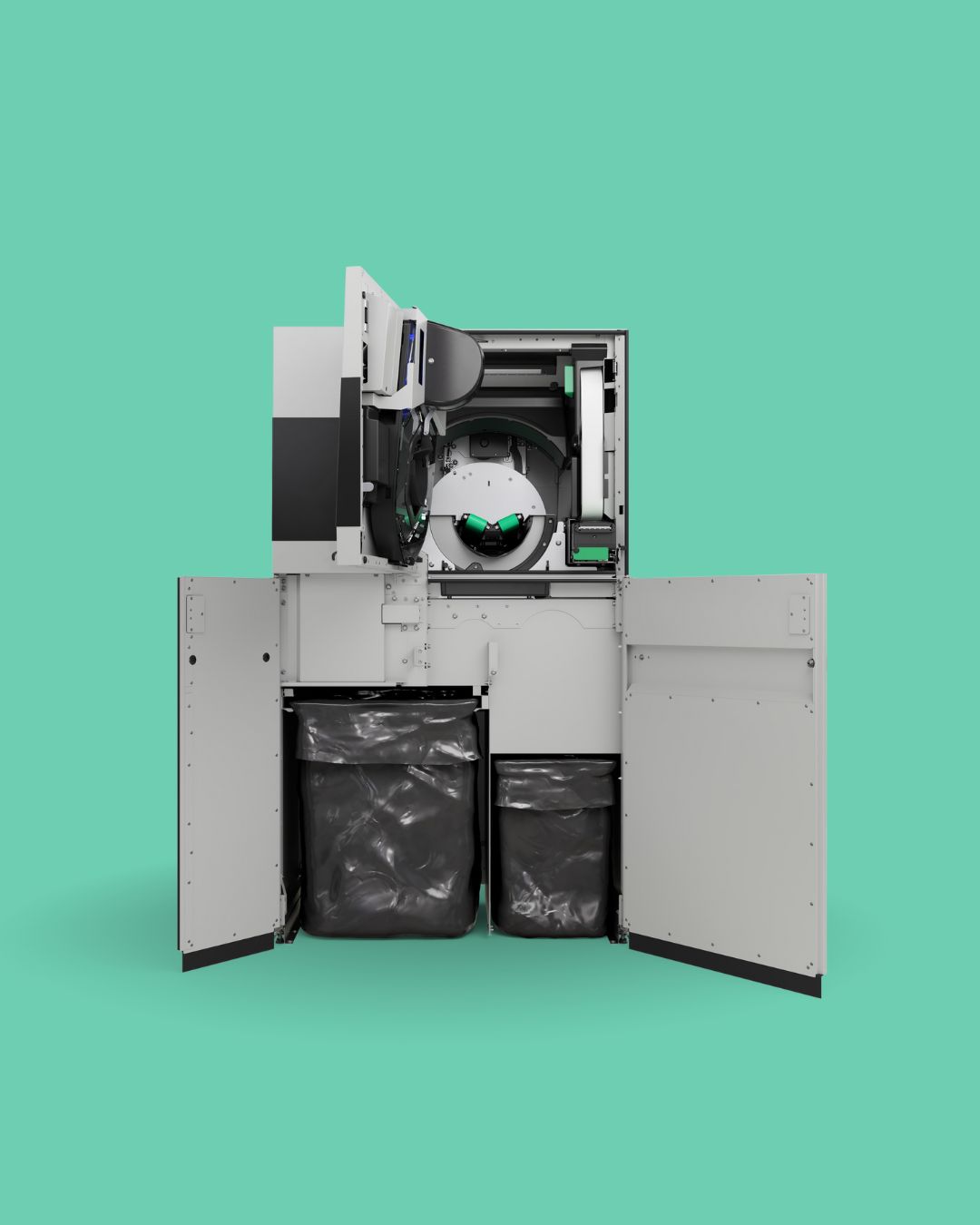

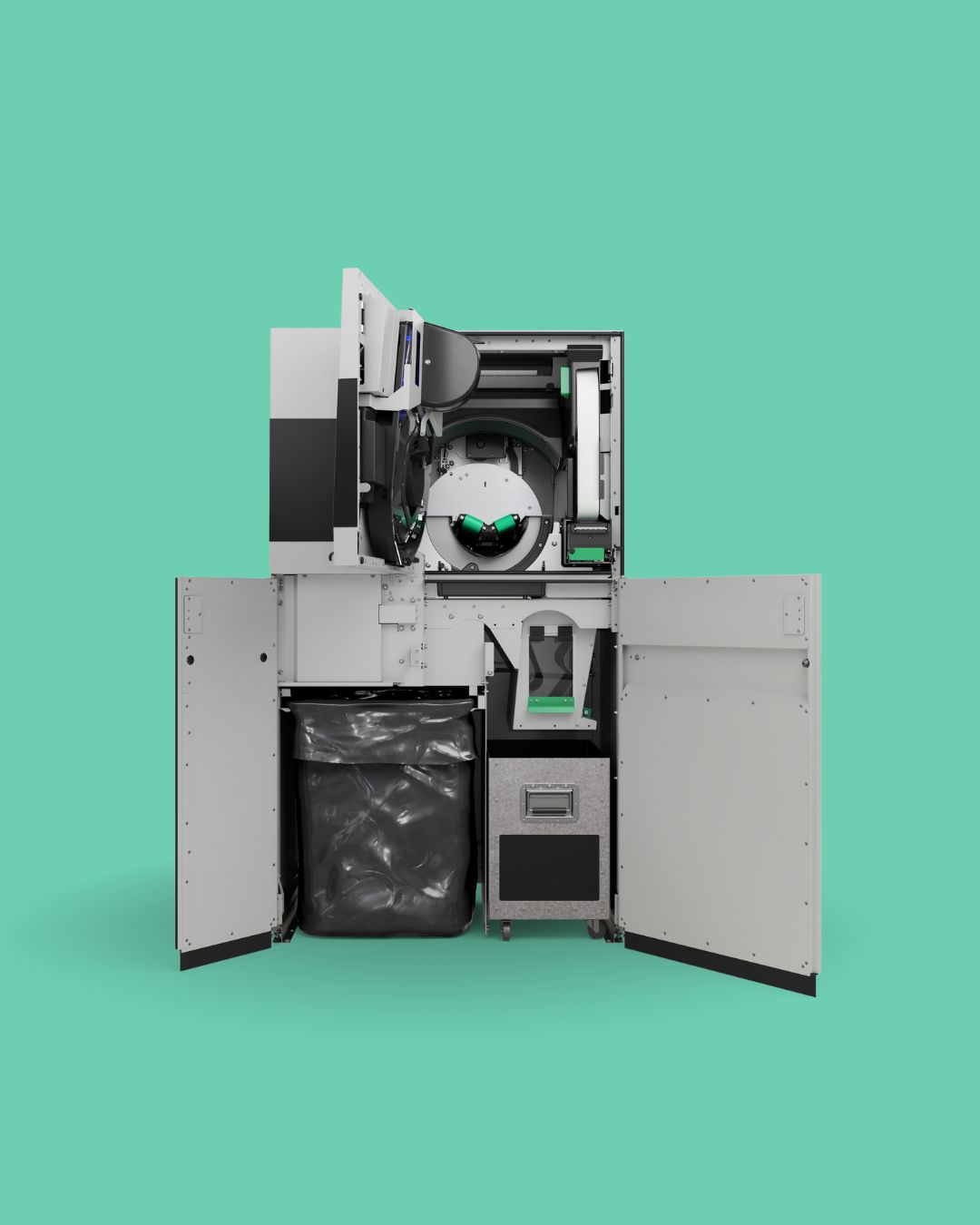

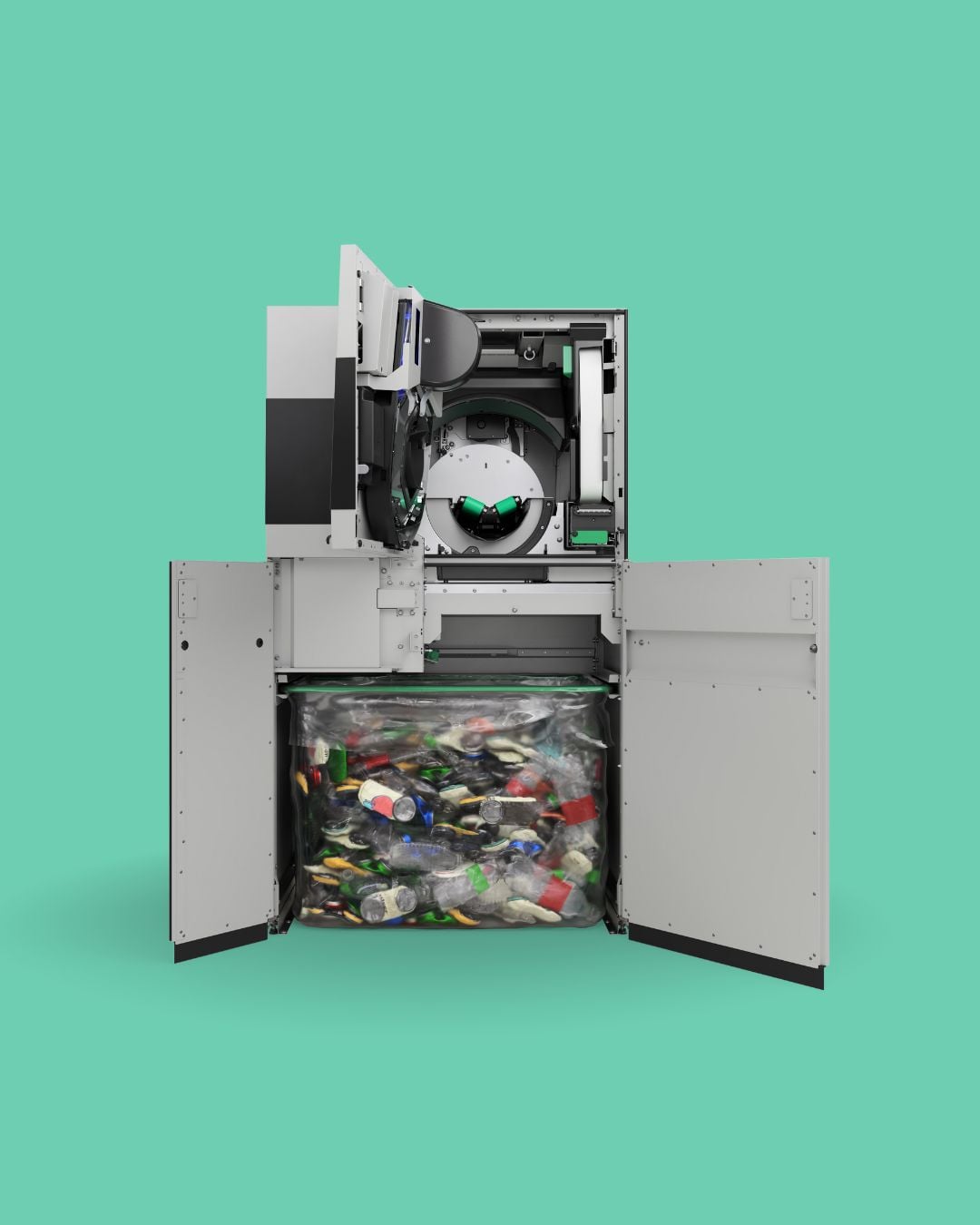

      TOMRA M1 Mix

      Accept plastic bottles and cans.

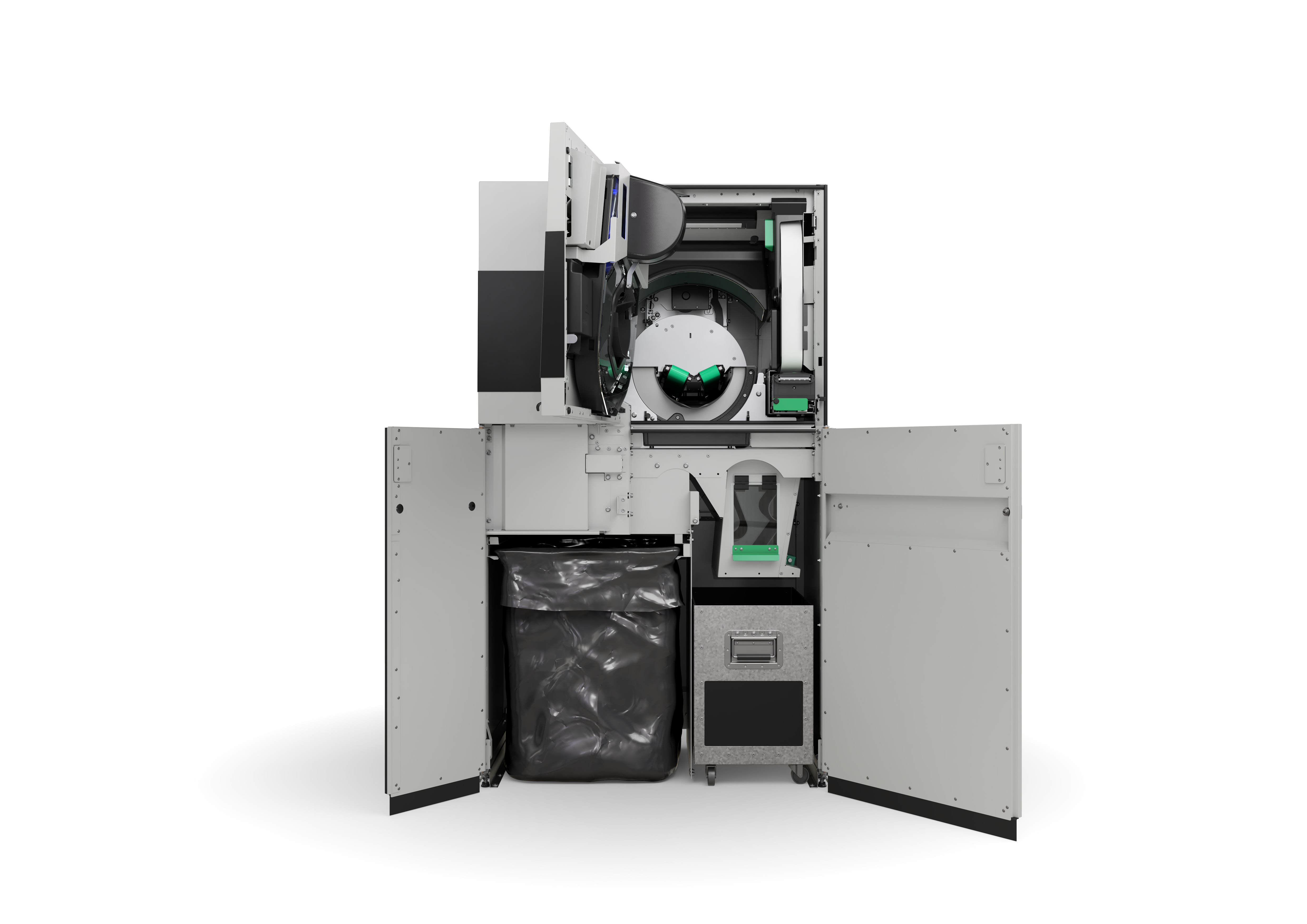

      TOMRA M1 Mix Drop

      Accept plastic bottles, cans and glass bottles.

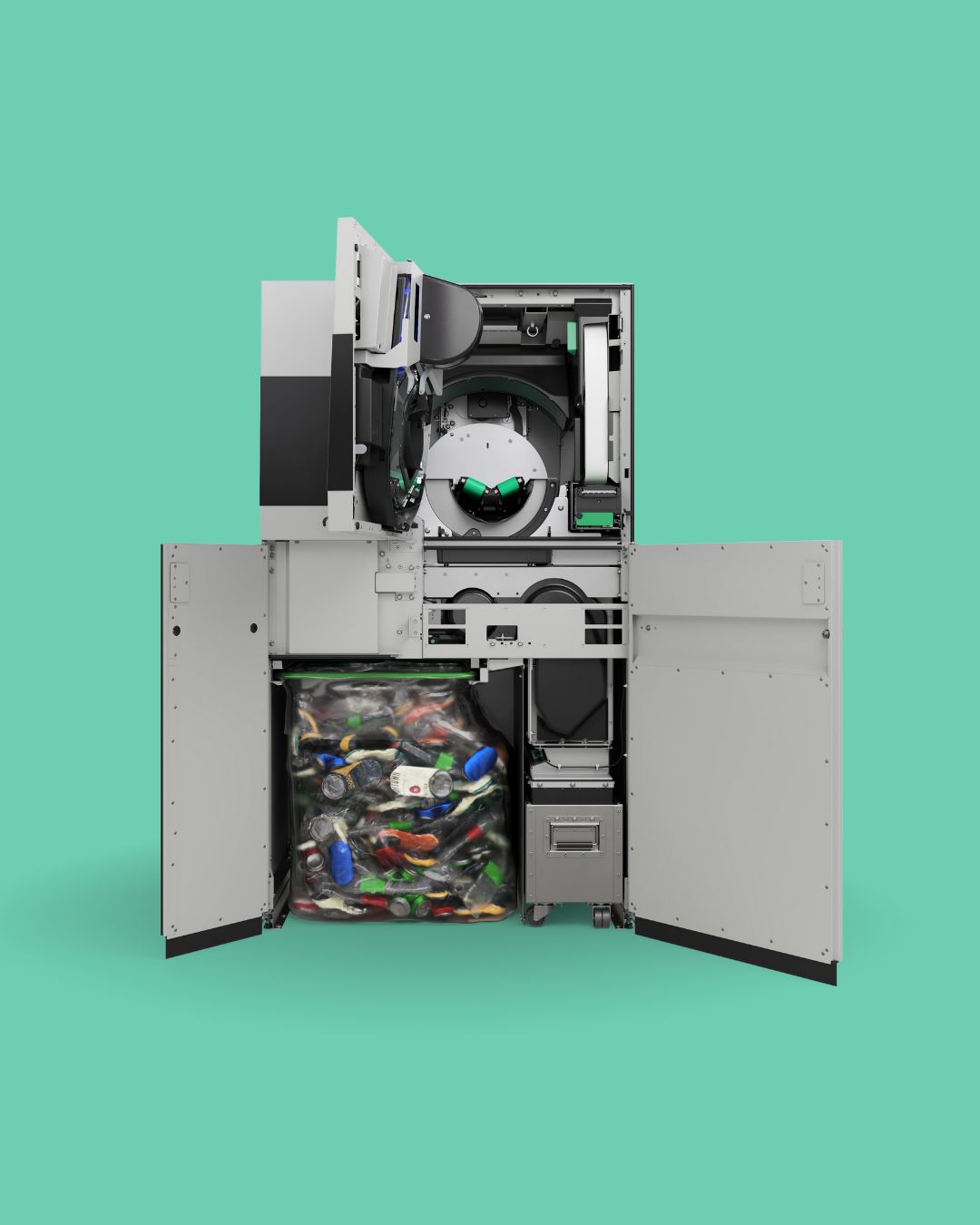

      TOMRA M1 Mix Break

      Accept plastic bottles, cans and glass bottles.

      TOMRA M1 PET Can

      Accept plastic bottles and cans.

      Discover M1 Mix Drop

      Click to see every detail

      Interested in TOMRA M1, or do you have questions?

      Contact TOMRA

      The feedback has been good. We see repeat customers coming back daily using it...

      Dave Barry, Daybreak Southlink
      Dave Barry, Daybreak SouthlinkStore Manager
      Video poster
      Learn more about Daybreak Southlink case

      We're very happy with it. The machine is very easy and intelligent as well.

      Aaron Massey
      Aaron MasseyCostcutter Windy Arbour owner
      Video poster
      Learn more about Costcutter Windy Arbour case

      Get the brochure

      Take the info away with you

      Get the brochure
      TitleDescriptionSize
      TOMRA M1 Global product brochure EnglishDownload here2.56 Mb
