Efficient and simple recycling
The T70 TriSort can do it all – from sorting to storage – faster and smoother than ever before thanks to TOMRA Flow, our 360˚ technology.

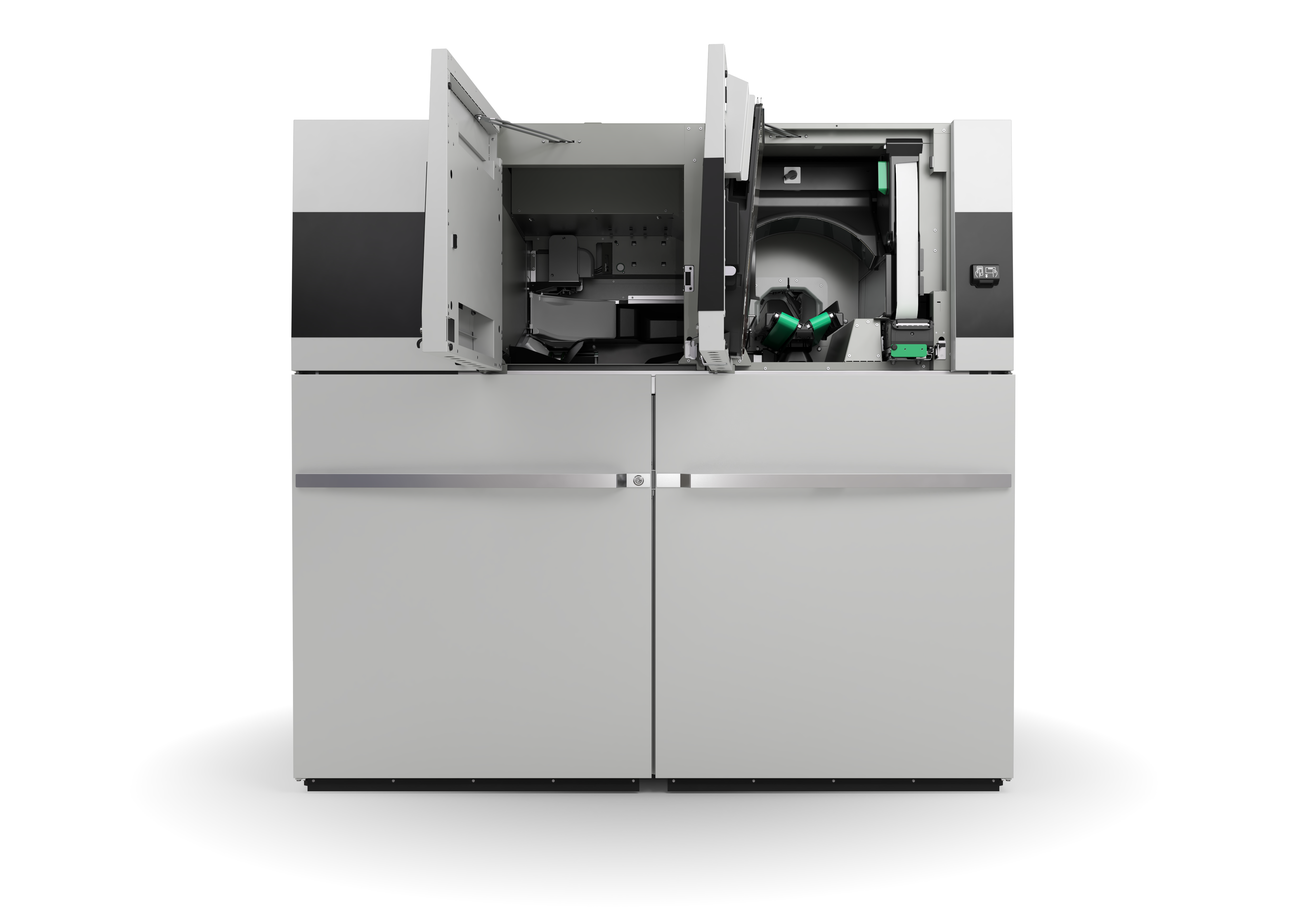

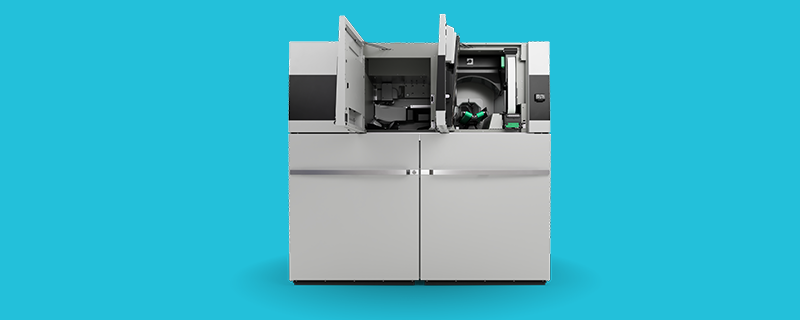

TOMRA T70 TriSort reverse vending machine
- Designed for medium to large stores
- Accept cans
- plastic bottles or glass bottles
- Footprint of 2m²
- Up to 45 containers per minute
Details
Standalone reverse vending machine
Powered with TOMRA Flow™
Fully compatible with the TOMRA Digital Solutions
Specifications
Dimensions
- Width (mm)
- 1900 mm
- Depth (mm)
- 1040 mm
- Height min (mm)
- 1800 mm
- Height max (mm)
- 1800 mm
- Height min-max (mm)
- 1800
- Footprint (m2)
- 2 m²
- Weight (kg)
- 525 kg
- Infeed height min (mm)
- 1300 mm
- Infeed height max (mm)
- 1300 mm
- Infeed height min-max (mm)
- 1300
- Adjustment range for height (mm) +25
- 25 mm
Storage Capacity
- Storage Capacity Plastic Bottles per bin (up to)
- 850
- Storage Capacity Cans per bin (up to)
- 1500
Environmental
- Humidity Max (%) Maximum 90% relative humidity, non-condensing
- 90 %
- Temperature Min (C)
- 10 °C
- Temperature Max (C)
- 40 °C
- Temperature Min (C)
- none °C
- Temperature Max (C)
- none °C
Electrical
- Power Consumption Max (kW)
- 3 kW
- Power Consumption Standby (kW)
- 0.067 kW
- Mains Voltage (V)
- 400 V 3 ph 50 Hz, 16 A fuse / 208 V 3 ph 60 Hz, 20 A fuse, C-characteristics (dedicated grounded mains supply) V
- Mains Frequency (Hz)
- 50/61 Hz
Standard Configuration
- Machine Type
- standalone
- Additional Machine Type Configuration
- none
- Adjustment Hight Included
- Yes
- Bin Unload Direction
- front
- End of lane configurations
- none
- Number of Cabinets
- 1
- Number of Bins per cabinet
- 3
- Compactor Included
- Yes
- Compactor type
- PET crusher/ Can crusher/Mix crusher (cans, PET bottles) on left/right side, SoftDrop or Drop for glass bottles (in the middle)
- Available Colors
- light_grey
- User Interface
- touchscreen, user_guiddance
- Display Included
- Yes
- Display Type
- touchscreen
- User Interface
- 10.4’’ touch display, video and sound capabilities, user guidance on machine screen
- Display Size (inch)
- 10.4
- Printer Included
- Yes
- Printer Type
- thermal
Market
- Available Countries
- GLOBAL, AE, CZ, DK, ES, FI, FR, IT, PT, SE, AT, DE, GR, PL, HU, RS, TR
- Placement Fit
- supermarket
Recognition
- Recognition Technology
- TOMRA Flow TechnologyTM (360º instant recognition, shape recognition, full container detection, barcode recognition, metal detection)
- Speed Capability (up to containers/min)
- 45
- Accepted Containers
- plastic_bottles, aluminum_cans, glass_bottles, mix
Connectivity
- External IT Interface
- LAN (Ethernet TCP/IP), POS compatible
- Digital Tools
- Fully compatible with TOMRA’s portfolio of digital products and APIs
- Backroom Integration Supported
- No
TOMRA T70 TriSort – Good things come in threes
Small space, big impact
Accept, compact, and store the widest range of containers, including glass, PET plastic, and cans, including refillables, all within 2m² leaving more store space dedicated to sales.

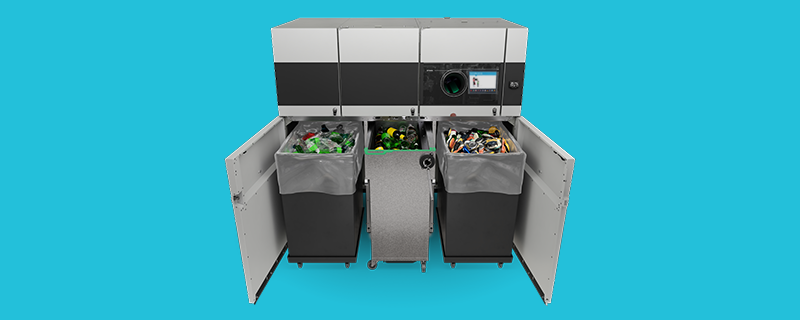

Store more than ever before
Accept the most volume in the smallest footprint with a 50% increase in storage capacity over TOMRA’s previous model, thanks to dual compactors and bin-rerouting function.
So many ways to make it fit your store
From the user interface screen to the design on the machine’s exterior to the reprogrammable sorting options, everything is customizable to create the recycling program that works best for your store.
