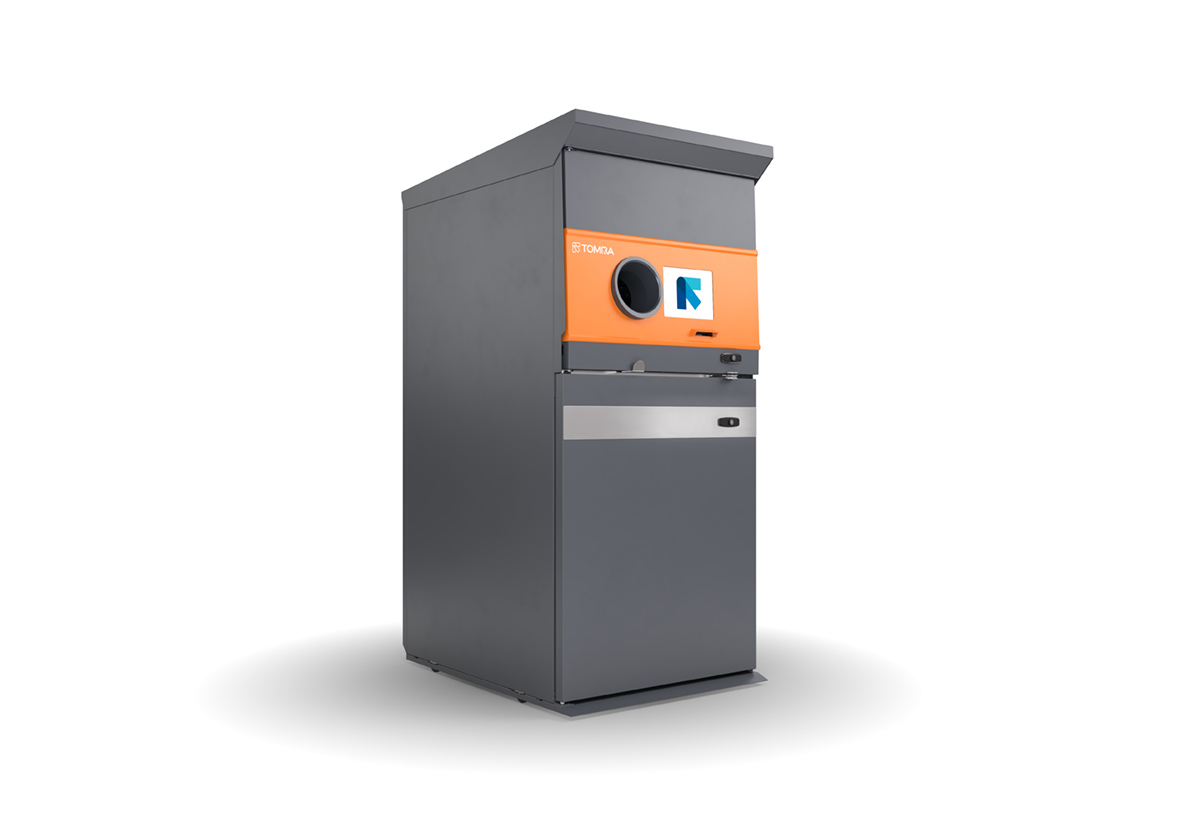

      TOMRA S1 Rugged reverse vending machine

      TOMRA S1 Rugged reverse vending machine

      Up to the challenge, in any conditions
      • Designed for semi-outdoors use
      • Accept cans
      • plastic bottles
      • or glass bottles
      • Footprint of 0
      • 9m²
      • Up to 45 containers per minute
      Details
      Standalone reverse vending machine
      Powered with TOMRA Flow™
      Fully compatible with the TOMRA Digital Solutions
      Specifications

      Dimensions

      Width (mm)
      816 mm
      Depth (mm)
      1100 mm
      Height min (mm)
      1792 mm
      Height max (mm)
      1792 mm
      Height min-max (mm)
      1792
      Footprint (m2)
      0.9 m²
      Weight (kg)
      323 kg
      Infeed height min (mm)
      1210 mm
      Infeed height max (mm)
      1210 mm
      Infeed height min-max (mm)
      1210
      Adjustment range for height (mm) +25
      25 mm

      Storage Capacity

      Storage Capacity Plastic Bottles per bin (up to)
      1100
      Storage Capacity Cans per bin (up to)
      3200

      Environmental

      Humidity Max (%) Maximum 90% relative humidity, non-condensing
      90 %
      Temperature Min (C)
      0 °C
      Temperature Max (C)
      40 °C
      Temperature Min (C)
      none °C
      Temperature Max (C)
      none °C

      Electrical

      Power Consumption Max (kW)
      2 kW
      Power Consumption Standby (kW)
      0.059000000000000004 kW
      Mains Voltage (V)
      400 V 3 ph 50 Hz, 16 A fuse / 208 V 3 ph 60 Hz, 20 A fuse, C-characteristics (dedicated grounded mains supply) 230 V 1 ph 50 H, 13-16 A fuse, C-characteristics (dedicated grounded mains) V
      Mains Frequency (Hz)
      50/60 Hz

      Standard Configuration

      Machine Type
      standalone
      Additional Machine Type Configuration
      none
      Adjustment Hight Included
      Yes
      Bin Unload Direction
      front
      End of lane configurations
      none
      Number of Cabinets
      1
      Number of Bins per cabinet
      1
      Compactor Included
      Yes
      Compactor type
      PET crusher / Can crusher / Mix crusher (cans, PET bottles), Glass crusher. Drop for one-way glass bottles or refillable PET bottles *
      Available Colors
      light_grey
      User Interface
      touchscreen, user_guiddance
      Display Included
      Yes
      Display Type
      touchscreen
      User Interface
      10.4’’ touch display with high brightness, suitable for direct sunlight exposure, video and sound capabilities, user guidance on machine screen
      Display Size (inch)
      10.4
      Printer Included
      Yes
      Printer Type
      thermal

      Market

      Available Countries
      GLOBAL, AE, CZ, GB, ES, FR, IT, PT, SE, DE, GR, HU, PL, RS
      Placement Fit
      convenience_store

      Recognition

      Recognition Technology
      TOMRA Flow TechnologyTM (360º instant recognition, shape recognition, full container detection, barcode recognition, metal detection)
      Speed Capability (up to containers/min)
      45
      Accepted Containers
      plastic_bottles, aluminum_cans, refillable_bottles, glass_bottles

      Connectivity

      External IT Interface
      LAN (Ethernet TCP/IP), POS compatible
      Digital Tools
      Fully compatible with TOMRA’s portfolio of digital products and APIs
      Backroom Integration Supported
      No

      TOMRA S1 Rugged - Up to the challenge, in any conditions

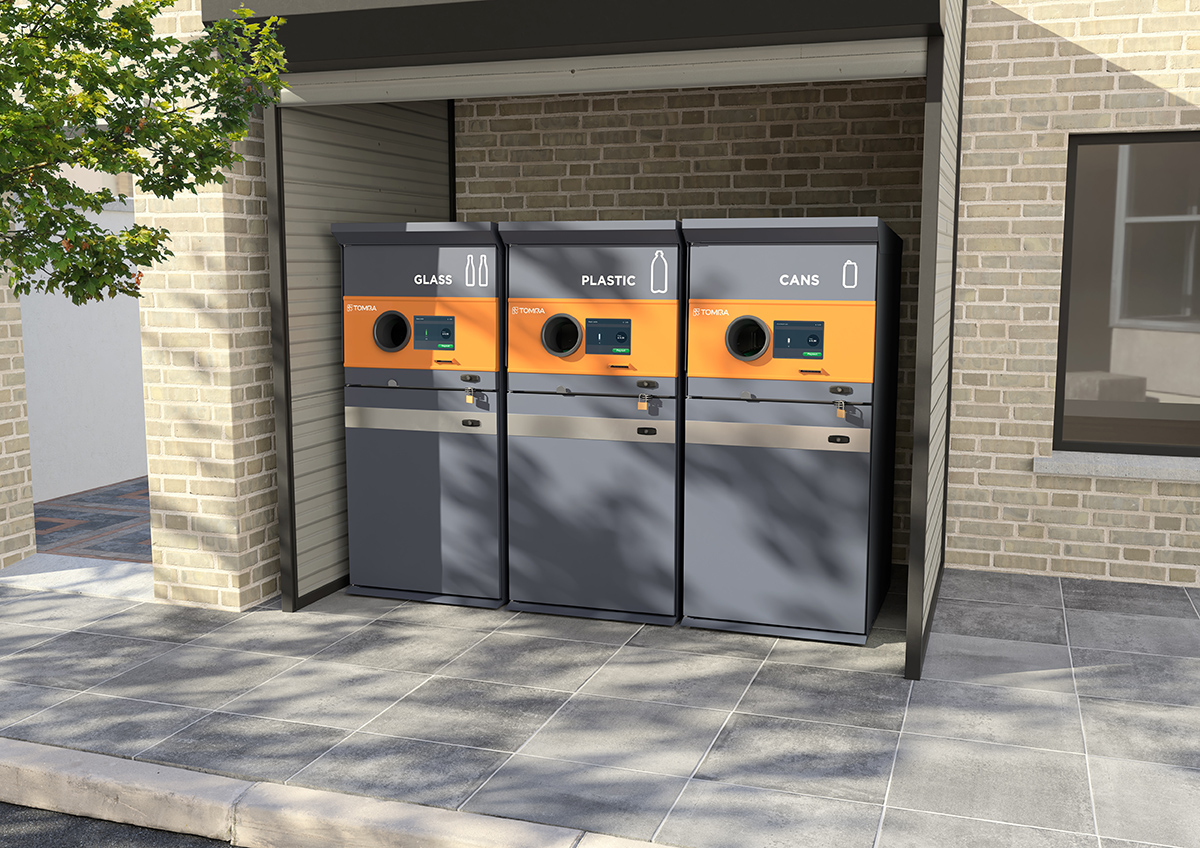

      A durable solution to suit your environment

      The S1 Rugged is specially designed to withstand demanding use and exposure to the elements – ideally suited to metropolitan areas. Leading system integrity and resistance to wet, semi-outdoor locations, TOMRA S1 Rugged is always up to the challenge.

      Make more time for your store

      Reduce staff disruptions with a more efficient reverse vending machine. The S1 Rugged’s storage bin can take one-third more than the previous model, meaning fewer bin changes, more uptime, and less staff time spent managing your machine.

      Create a smoother user- experience

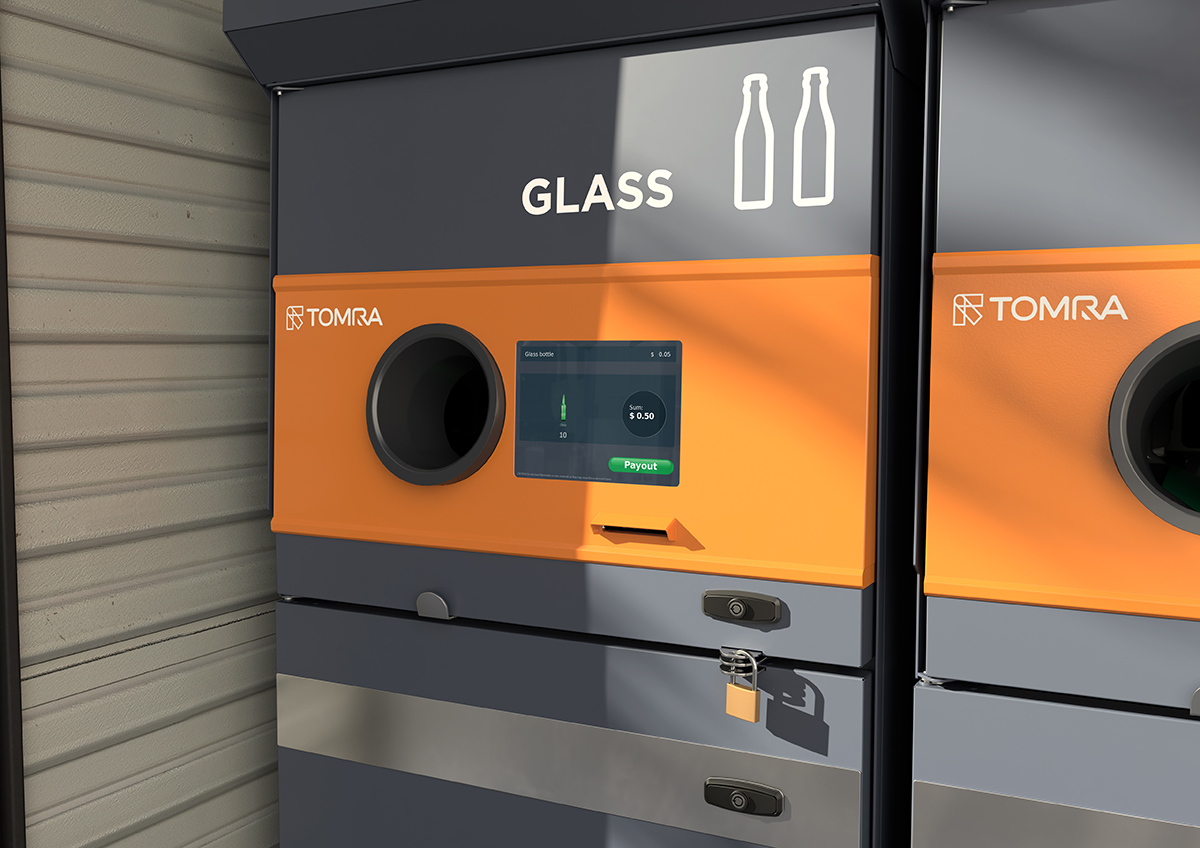

      Satisfied recyclers will keep coming back and will spread the word about the great recycling experience you offer. Powered by TOMRA Flow Technology™, the S1 Rugged accepts containers in a smooth, fast flow, with simple on-screen instructions that are easy to read – even in bright sunlight.

      Be ready to go when customers come to recycle

      Collect more cans, plastic, and glass bottles with a solution that stays up and running. With high capacity, and a support team that’s always at your service, customers can count on you to be ready whenever they are ready to recycle.

      discover s1 rugged

      Click to see every detail

      Interested in TOMRA S1 Rugged, or do you have questions?

      Contact TOMRA

      Get the brochure

      Take the info away with you

      Get the brochure
      TitleDescriptionSize
      TOMRA S1 Rugged Global product brochure EnglishDownload here2.25 Mb

      Digital Solutions & Service

      Digital solutions

      Want to make the most out of your reverse vending? TOMRA’s Digital solutions and APIs make your recycling program work even harder for your store. Connect with your TOMRA reverse vending machine!

      EXPLORE TOMRA's DIGITAL OFFERINGs
      Jul 15, 2021

      Reverse vending service and support

      Ensure peace of mind for store colleagues. Our proactive, remote machine monitoring and network of field technicians keep your reverse vending equipment working hard for your business.
