      TOMRA S2 Rugged Plus | Outdoor Reverse Vending Machine

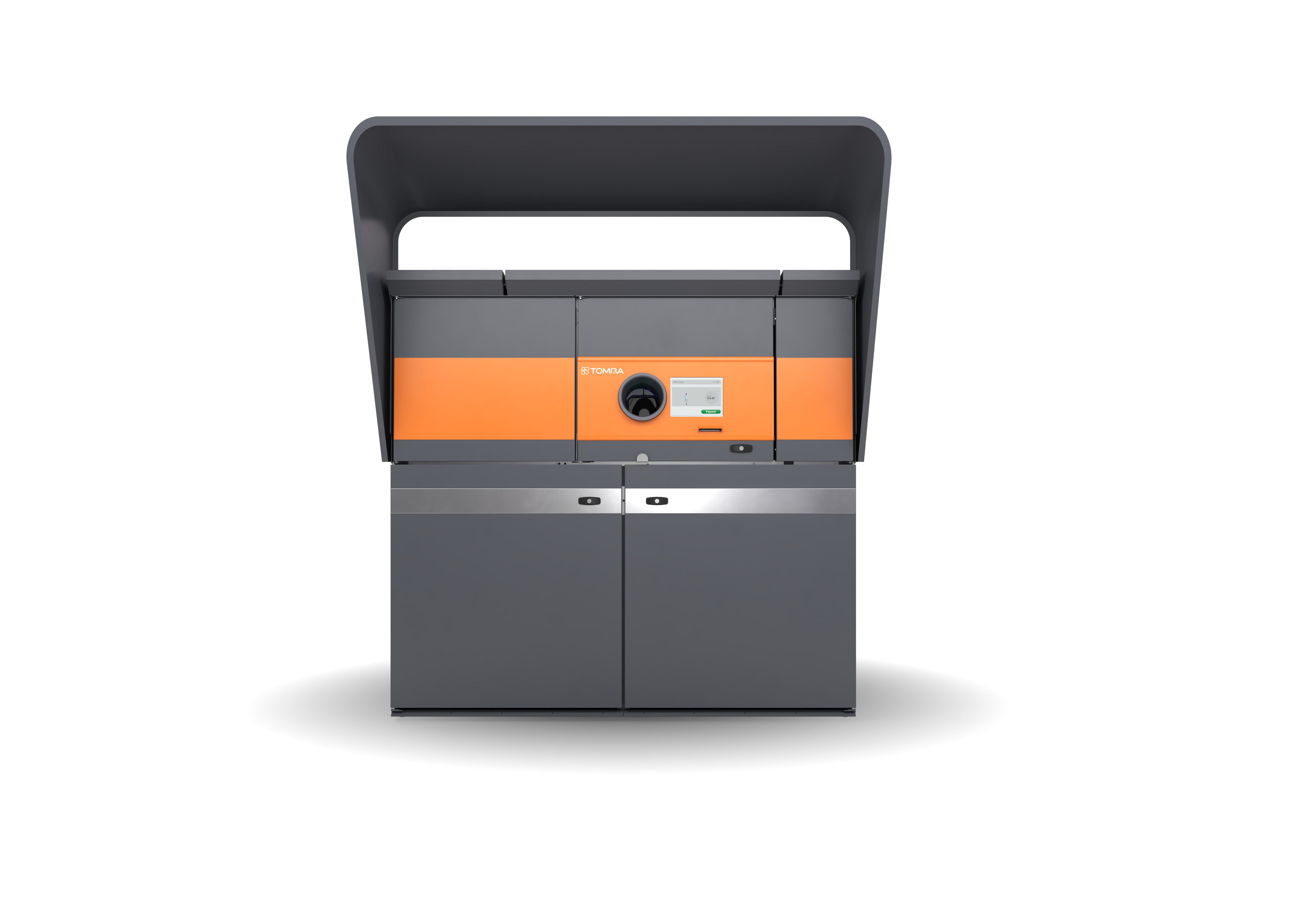

      TOMRA S2 Rugged Plus

      Tough on the outside, smart on the inside
      • Designed for semi-outdoor and outdoor* use *(with heater)
      • Accept cans
      • plastic bottles
      • or glass bottles
      • Up to 45 containers per minute
      • Footprint of 2.8 - 5.4 m²
      Details
      Standalone reverse vending machine
      Powered with TOMRA Flow™
      Fully compatible with the TOMRA Digital Solutions
      Specifications

      Dimensions

      Width (mm)
      1886 mm
      Depth (mm)
      1489 mm
      Height min (mm)
      1794 mm
      Height max (mm)
      1794 mm
      Height min-max (mm)
      1794
      Footprint (m2)
      2.8 m²
      Weight (kg)
      568 kg
      Infeed height min (mm)
      1210 mm
      Infeed height max (mm)
      1210 mm
      Infeed height min-max (mm)
      1210
      Adjustment range for height (mm) +25
      0 mm

      Storage Capacity

      Storage Capacity Plastic Bottles per bin (up to)
      1400
      Storage Capacity Cans per bin (up to)
      5100

      Environmental

      Humidity Max (%) Maximum 90% relative humidity, non-condensing
      90 %
      Temperature Min (C)
      0 °C
      Temperature Max (C)
      40 °C
      Temperature Min (C)
      -20 °C
      Temperature Max (C)
      40 °C

      Electrical

      Power Consumption Max (kW)
      2.8-3.7 kW
      Power Consumption Standby (kW)
      0.061 kW
      Mains Voltage (V)
      400V AC, 3-phase w/ground, 50Hz, 16A 230V AC, 1-phase w/ground, 50Hz, 13-15A V
      Mains Frequency (Hz)
      50 Hz
      Mains Phase
      three

      Standard Configuration

      Machine Type
      standalone
      Additional Machine Type Configuration
      none
      Adjustment Hight Included
      No
      Bin Unload Direction
      front
      End of lane configurations
      none
      Number of Cabinets
      01/03/2026 00:00:00
      Number of Bins per cabinet
      2
      Compactor Included
      Yes
      Compactor type
      PET crusher, Can crusher, Mix crusher, Glass crusher and Drop
      Available Colors
      dark_grey
      User Interface
      touchscreen, user_guiddance
      Display Included
      Yes
      Display Type
      touchscreen
      User Interface
      10.4’’ touch display, video and sound capabilities, user guidance on machine screen
      Display Size (inch)
      10.4
      Printer Included
      Yes
      Printer Type
      thermal

      Market

      Available Countries
      GLOBAL, GB, IE, ES, PT, PL, RO, RS
      Placement Fit
      supermarket

      Recognition

      Recognition Technology
      TOMRA Flow TechnologyTM (360º instant recognition, shape recognition, full container detection, barcode recognition, metal detection)
      Speed Capability (up to containers/min)
      45
      Accepted Containers
      plastic_bottles, aluminum_cans, glass_bottles, mix

      Connectivity

      External IT Interface
      LAN (Ethernet TCP/IP), POS compatible
      Digital Tools
      Fully compatible with TOMRA’s portfolio of digital products and APIs
      Backroom Integration Supported
      No

      TOMRA S2 Rugged Plus - Tough on the outside, smart on the inside

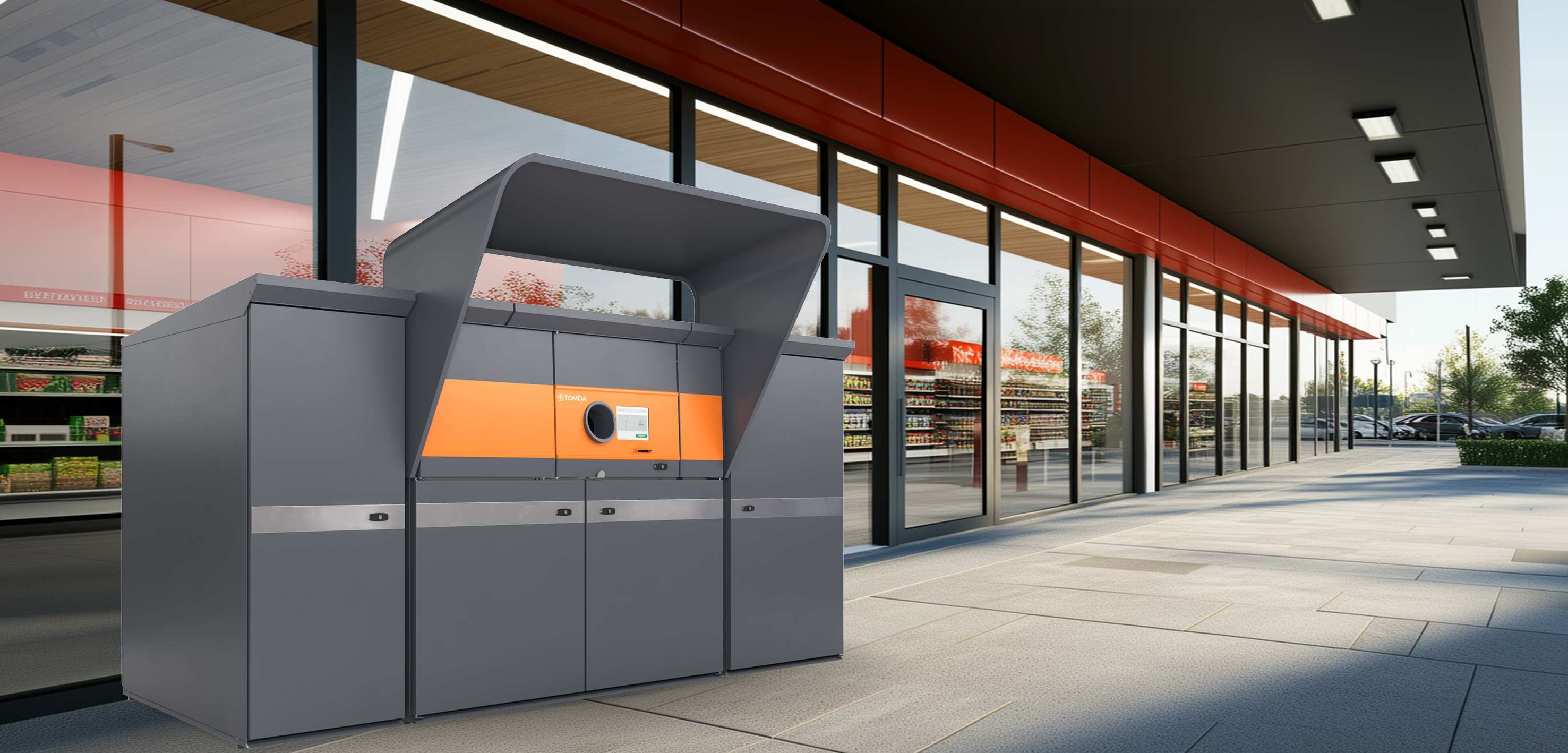

      Tough, efficient, and ready for the outdoors

      Built for outdoor performance, the TOMRA S2 Rugged Plus is engineered for durability and system integrity. It saves valuable indoor space while offering customers a convenient return experience. With high-capacity storage and advanced digital tools, it delivers operational efficiency and a seamless recycling journey.

      Convenient, fast and effortless recycling

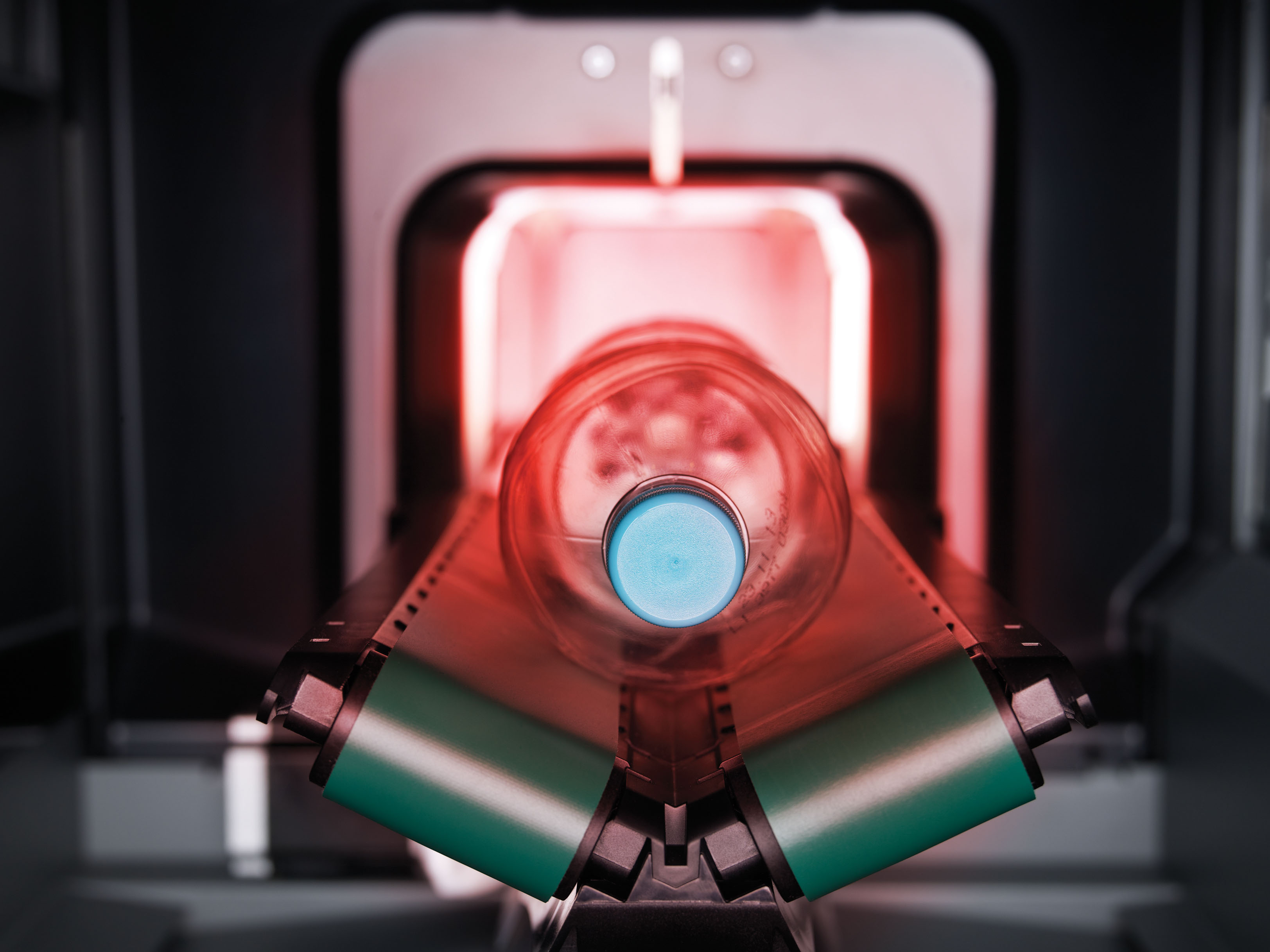

      Powered by TOMRA Flow Technology™, the TOMRA S2 Rugged Plus ensures instant, accurate container recognition, keeping queues short and operations smooth, even during peak hours. Spacious bins, high-brightness screens, and real-time monitoring make recycling effortless for users and staff alike.

      Maximize availability, simplify maintenance

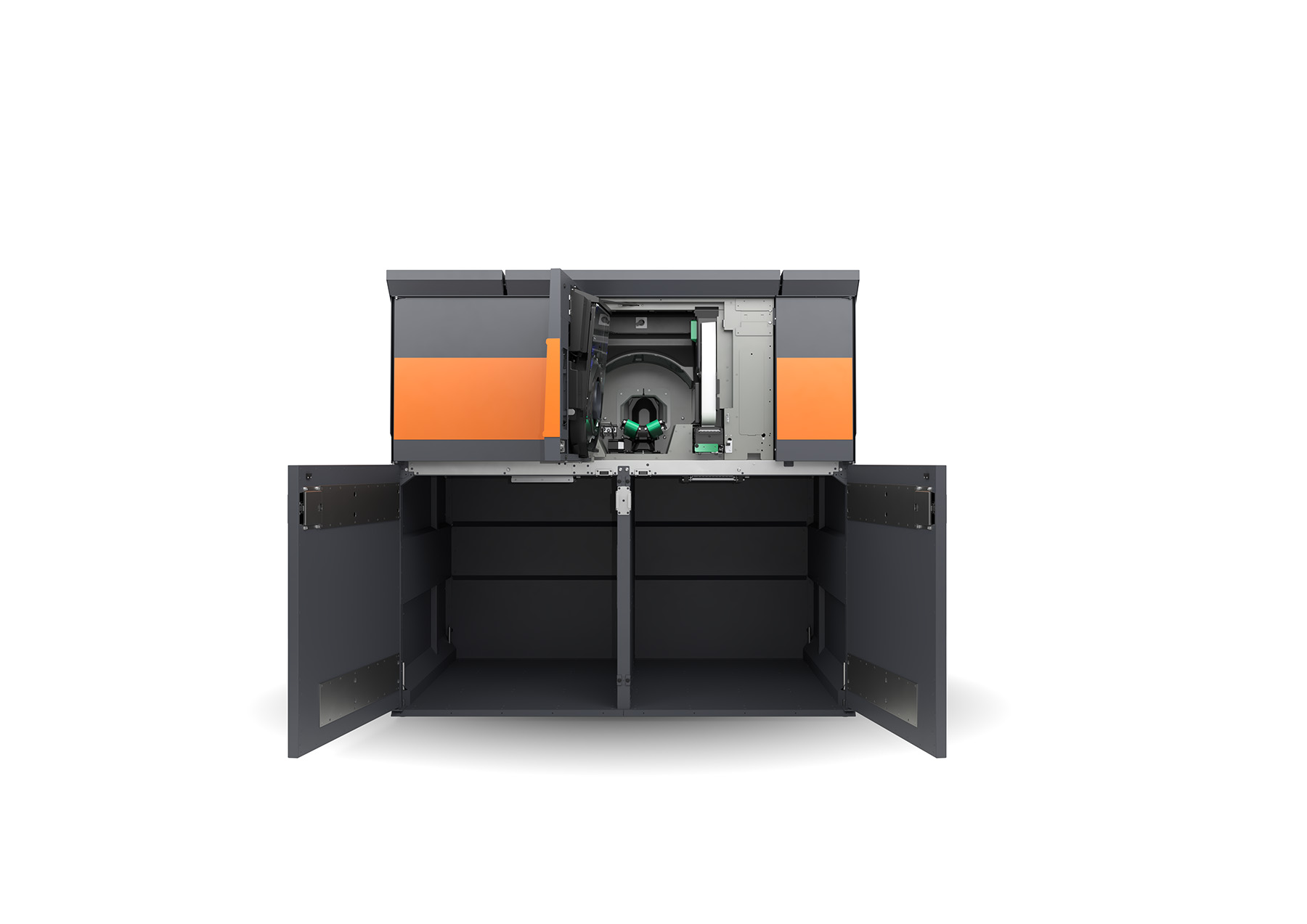

      Accept, compact, and store plastic bottles, cans, and glass in one standalone solution. Two Europallet-sized bins and an optional re-routing function keep the system running even when one bin is full, minimizing downtime and maximizing availability.

      Designed to grow with your business

      As your needs evolve, so does the TOMRA S2 Rugged Plus. Add a SoftDrop module to handle reusable bottles safely or expand with extra storage for bags, crushed containers, or supplies, reducing staff workload and future-proofing your operations.
