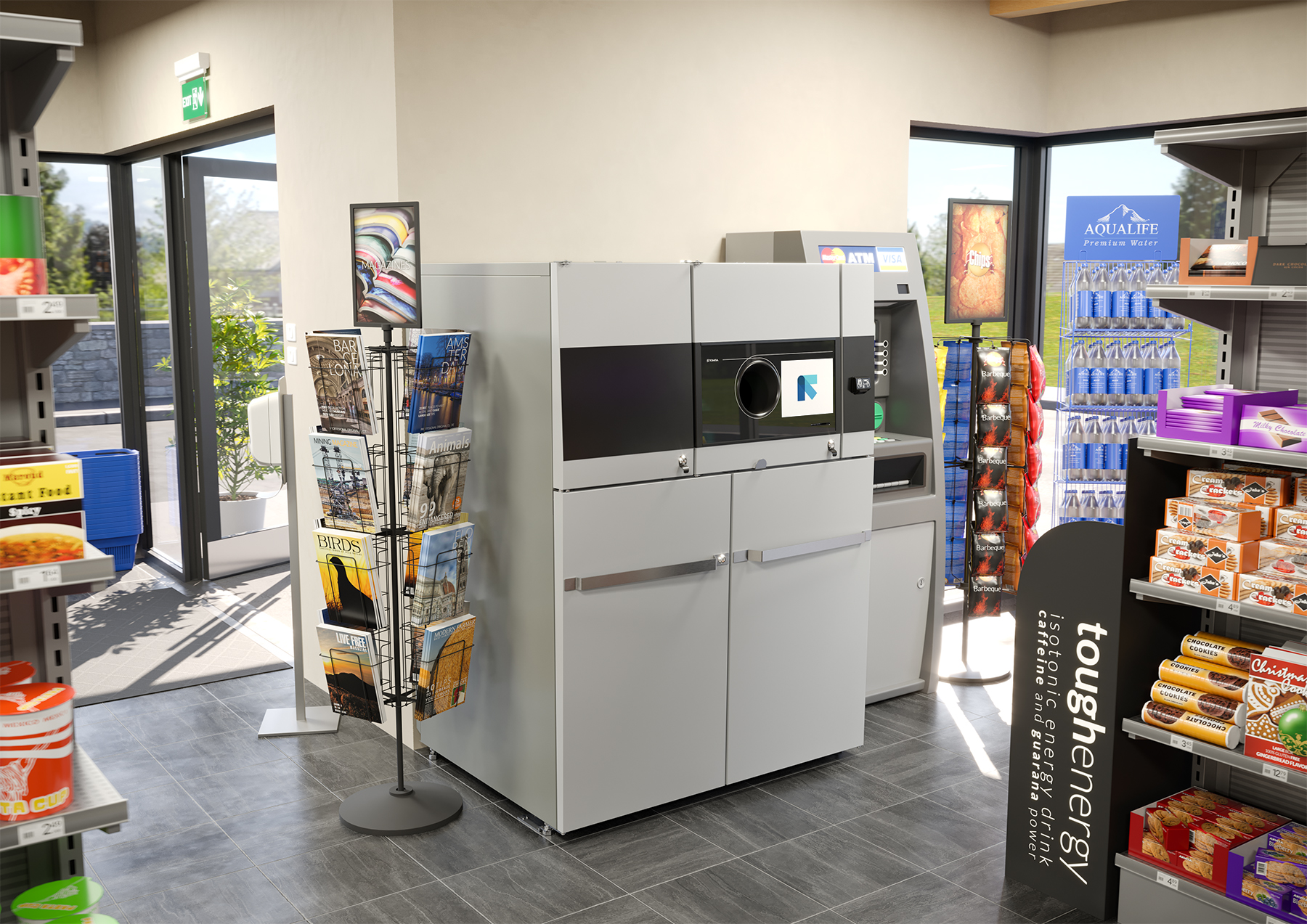

      TOMRA T70 Dual reverse vending machine

      TOMRA T70 Dual reverse vending machine

      Make recycling easy for you
      • Designed for small and medium stores
      • Accept cans
      • plastic bottles or glass bottles
      • Footprint of 1.34m²
      • Up to 45 containers per minute
      Details
      Standalone reverse vending machine
      Powered with TOMRA Flow™
      Fully compatible with the TOMRA Digital Solutions
      Specifications

      Dimensions

      Width (mm)
      1293 mm
      Depth (mm)
      1040 mm
      Height min (mm)
      1800 mm
      Height max (mm)
      1800 mm
      Height min-max (mm)
      1800
      Footprint (m2)
      1.34 m²
      Weight (kg)
      390 kg
      Infeed height min (mm)
      1194 mm
      Infeed height max (mm)
      1194 mm
      Infeed height min-max (mm)
      1194
      Adjustment range for height (mm) +25
      125 mm

      Storage Capacity

      Storage Capacity Plastic Bottles per bin (up to)
      1500
      Storage Capacity Cans per bin (up to)
      6000

      Environmental

      Humidity Max (%) Maximum 90% relative humidity, non-condensing
      90 %
      Temperature Min (C)
      10 °C
      Temperature Max (C)
      40 °C
      Temperature Min (C)
      none °C
      Temperature Max (C)
      none °C

      Electrical

      Power Consumption Max (kW)
      3.7 kW
      Power Consumption Standby (kW)
      0.061 kW
      Mains Voltage (V)
      400 V 3 ph 50 Hz, 16 A fuse / 208 V 3 ph 60 Hz, 20 A fuse, C-characteristics (dedicated grounded mains supply) 230 V 1 ph 50 H, 13-16 A fuse, C-characteristics (dedicated grounded mains) V
      Mains Frequency (Hz)
      50/60 Hz

      Standard Configuration

      Machine Type
      standalone
      Additional Machine Type Configuration
      wall-mount
      Adjustment Hight Included
      Yes
      Bin Unload Direction
      front, rear
      End of lane configurations
      none
      Number of Cabinets
      1
      Number of Bins per cabinet
      2
      Compactor Included
      Yes
      Compactor type
      For cans, PET bottles, can/PET mix, Glass bottles (drop or glass crush).
      Available Colors
      light_grey
      User Interface
      touchscreen, user_guiddance
      Display Included
      Yes
      Display Type
      touchscreen
      User Interface
      10.4’’ touch display, video and sound capabilities, user guidance on machine screen
      Display Size (inch)
      10.4
      Printer Included
      Yes
      Printer Type
      thermal

      Market

      Available Countries
      GLOBAL, AE, CZ, DK, GB, IE, ES, FI, FR, IT, NO, PT, SE, DE, AT, GR, HU, PL, RO, RS, TR
      Placement Fit
      supermarket

      Recognition

      Recognition Technology
      TOMRA Flow TechnologyTM (360º instant recognition, shape recognition, full container detection, barcode recognition, metal detection)
      Speed Capability (up to containers/min)
      45
      Accepted Containers
      plastic_bottles, aluminum_cans, refillable_bottles, glass_bottles

      Connectivity

      External IT Interface
      LAN (Ethernet TCP/IP), POS compatible
      Digital Tools
      Fully compatible with TOMRA’s portfolio of digital products and APIs
      Backroom Integration Supported
      No

      TOMRA T70 Dual - Make recycling easy for you

      Give your customers a great recycling experience

      Efficient and easy for customers to use, the T70 Dual is designed for fast, on-the-go recycling, powered by TOMRA Flow™ recognition technology.

      One machine can do it all

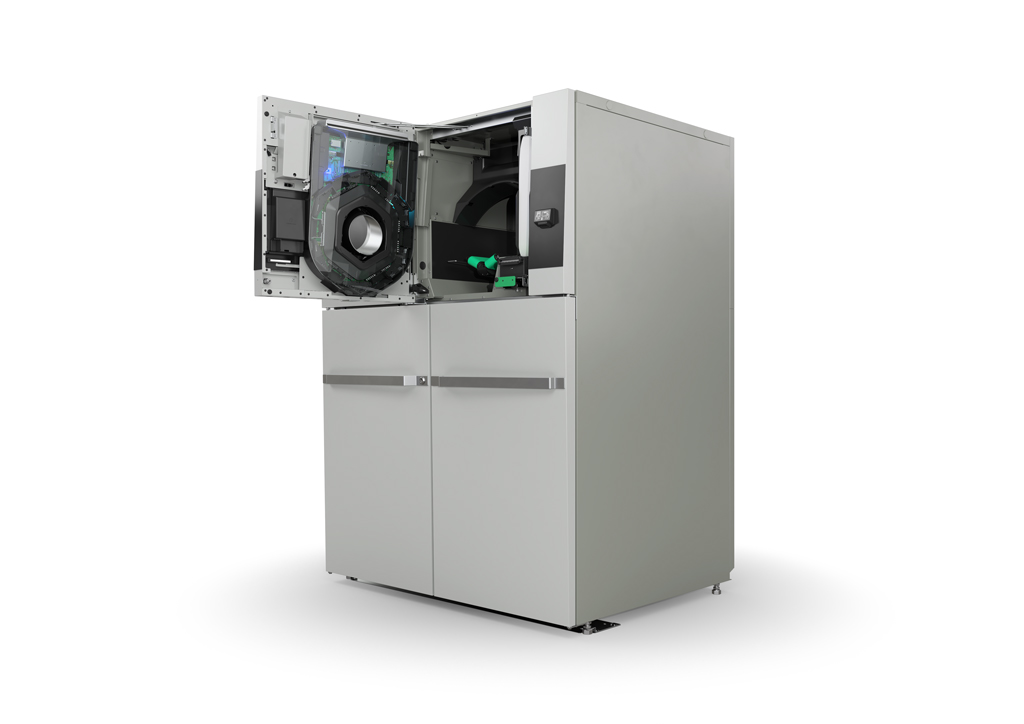

      Accept, compact, and store in one standalone machine. The TOMRA T70 Dual can be customized to accept plastic or glass bottles, and cans, depending on your market. You can also boost your solution with TOMRA Digital tools and get the best out of it.

      Maximum convenience and uptime for your store

      Choose to increase your peak hour capacity or use the re-routing function to keep recycling flowing even after one full bin. Flexible install options for optimal use of your space.

      Flexible installation options to make the best use of your space

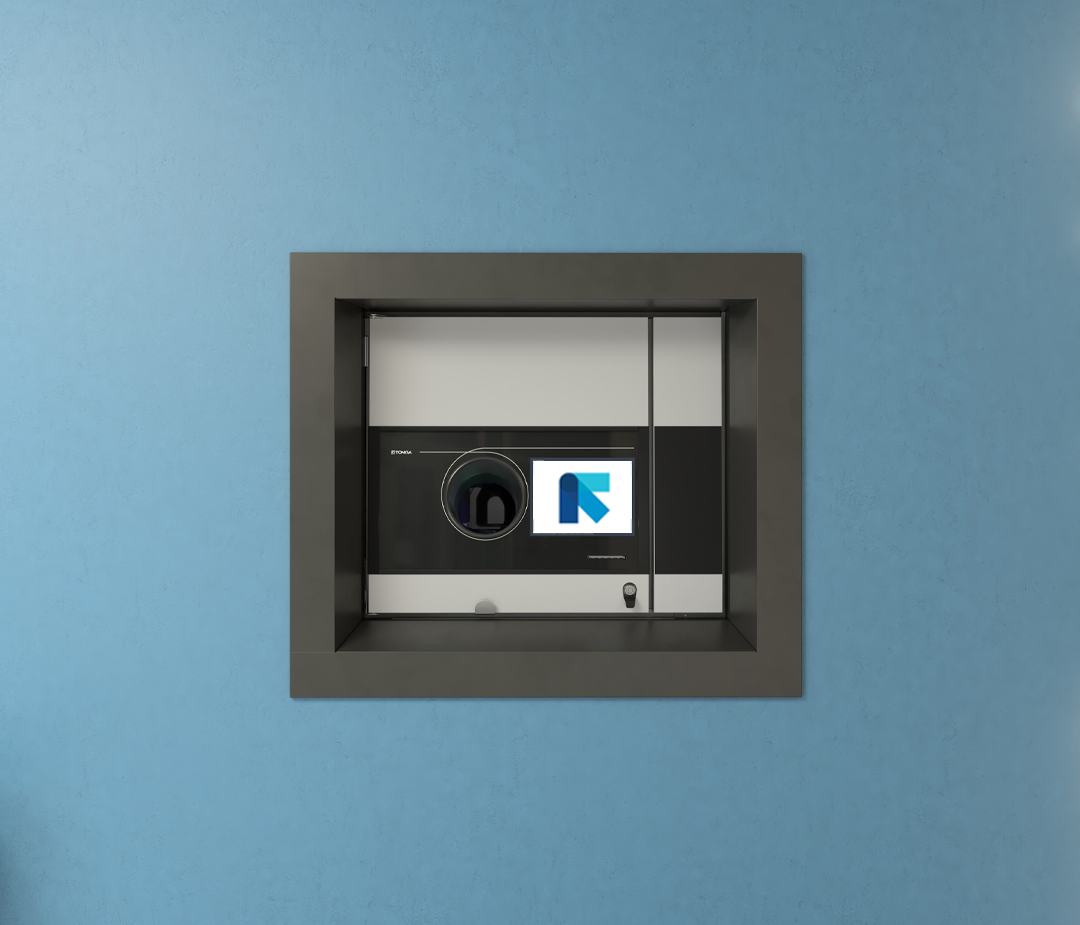

      Configure your T70 Dual with front or rear bin access or even install in-wall for a layout solution that works for your customers, your floorplan, and your employees.

      discover T70 dual

      Click to see every detail

      Interested in TOMRA T70 Dual, or do you have questions?

      Contact TOMRA

      Get the brochure

      Take the info away with you

      Get the brochure
      TitleDescriptionSize
      TOMRA T70 Dual Global product brochure EnglishDownload here2.29 Mb

      Digital Solutions & Service

      Digital solutions

      Want to make the most out of your reverse vending? TOMRA’s Digital solutions and APIs make your recycling program work even harder for your store. Connect with your TOMRA reverse vending machine!

      EXPLORE TOMRA's DIGITAL OFFERINGs
      Jul 15, 2021

      Reverse vending service and support

      Ensure peace of mind for store colleagues. Our proactive, remote machine monitoring and network of field technicians keep your reverse vending equipment working hard for your business.

      find out more
