Start recycling in any space
Less than 0.9m² is all it takes to offer your customers a great recycling experience when you select the T70 Single. Perfect for stores where space is limited.
TOMRA T70 Single reverse vending machine
- Designed for small to medium stores
- Accept cans
- plastic bottles or glass bottles
- Footprint of 0.9m²
- Up to 45 containers per minute
Details
Standalone reverse vending machine
Powered with TOMRA Flow™
Fully compatible with the TOMRA Digital Solutions
Specifications
Dimensions
- Width (mm)
- 813 mm
- Depth (mm)
- 1040 mm
- Height min (mm)
- 1690 mm
- Height max (mm)
- 1690 mm
- Height min-max (mm)
- 1690
- Footprint (m2)
- 0.9 m²
- Weight (kg)
- 275 kg
- Infeed height min (mm)
- 1194 mm
- Infeed height max (mm)
- 1194 mm
- Infeed height min-max (mm)
- 1194
- Adjustment range for height (mm) +25
- 125 mm
Storage Capacity
- Storage Capacity Plastic Bottles per bin (up to)
- 1100
- Storage Capacity Cans per bin (up to)
- 3200
Environmental
- Humidity Max (%) Maximum 90% relative humidity, non-condensing
- 90 %
- Temperature Min (C)
- 10 °C
- Temperature Max (C)
- 40 °C
- Temperature Min (C)
- none °C
- Temperature Max (C)
- none °C
Electrical
- Power Consumption Max (kW)
- 2 kW
- Power Consumption Standby (kW)
- 0.061 kW
- Mains Voltage (V)
- 400 V 3 ph 50 Hz, 16 A fuse / 208 V 3 ph 60 Hz, 20 A fuse, C-characteristics (dedicated grounded mains supply) 230 V 1 ph 50 H, 13-16 A fuse, C-characteristics (dedicated grounded mains) V
- Mains Frequency (Hz)
- 50/60 Hz
Standard Configuration
- Machine Type
- standalone
- Additional Machine Type Configuration
- wall-mount
- Adjustment Hight Included
- Yes
- Bin Unload Direction
- front, rear
- End of lane configurations
- none
- Number of Cabinets
- 1
- Number of Bins per cabinet
- 1
- Compactor Included
- Yes
- Compactor type
- PET crusher/ Can crusher/Mix crusher (cans, PET bottles), Glass crusher or Drop for glass bottles
- Available Colors
- light_grey
- User Interface
- touchscreen, user_guiddance
- Display Included
- Yes
- Display Type
- touchscreen
- User Interface
- 10.4’’ touch display, video and sound capabilities, user guidance on machine screen
- Display Size (inch)
- 10.4
- Printer Included
- Yes
- Printer Type
- thermal
Market
- Available Countries
- GLOBAL, AE, CZ, DK, GB, IE, ES, FR, IT, NO, PT, SE, AT, DE, GR, PL, RS
- Placement Fit
- convenience_store
Recognition
- Recognition Technology
- TOMRA FlowTechnologyTM (360º instant recognition, shape recognition, full container detection, barcode recognition, metal detection)
- Speed Capability (up to containers/min)
- 45
- Accepted Containers
- plastic_bottles, aluminum_cans, glass_bottles
Connectivity
- External IT Interface
- LAN (Ethernet TCP/IP), POS compatible
- Digital Tools
- Fully compatible with TOMRA’s portfolio of digital products and APIs
- Backroom Integration Supported
- No
TOMRA T70 Single - Recycling has a place in any space
One machine can do it all
Accept, compact and store in the same standalone machine. The T70 Single can accept PET plastic, cans and glass, or a mix, for maximum recycling capability.
An efficient experience for owners and users
Help your customers to recycle efficiently and easily with the T70 Single, featuring TOMRA Flow™ recognition technology. Simple to install, speedy to use, and designed for easy maintenance.
Flexible installations to suit your space

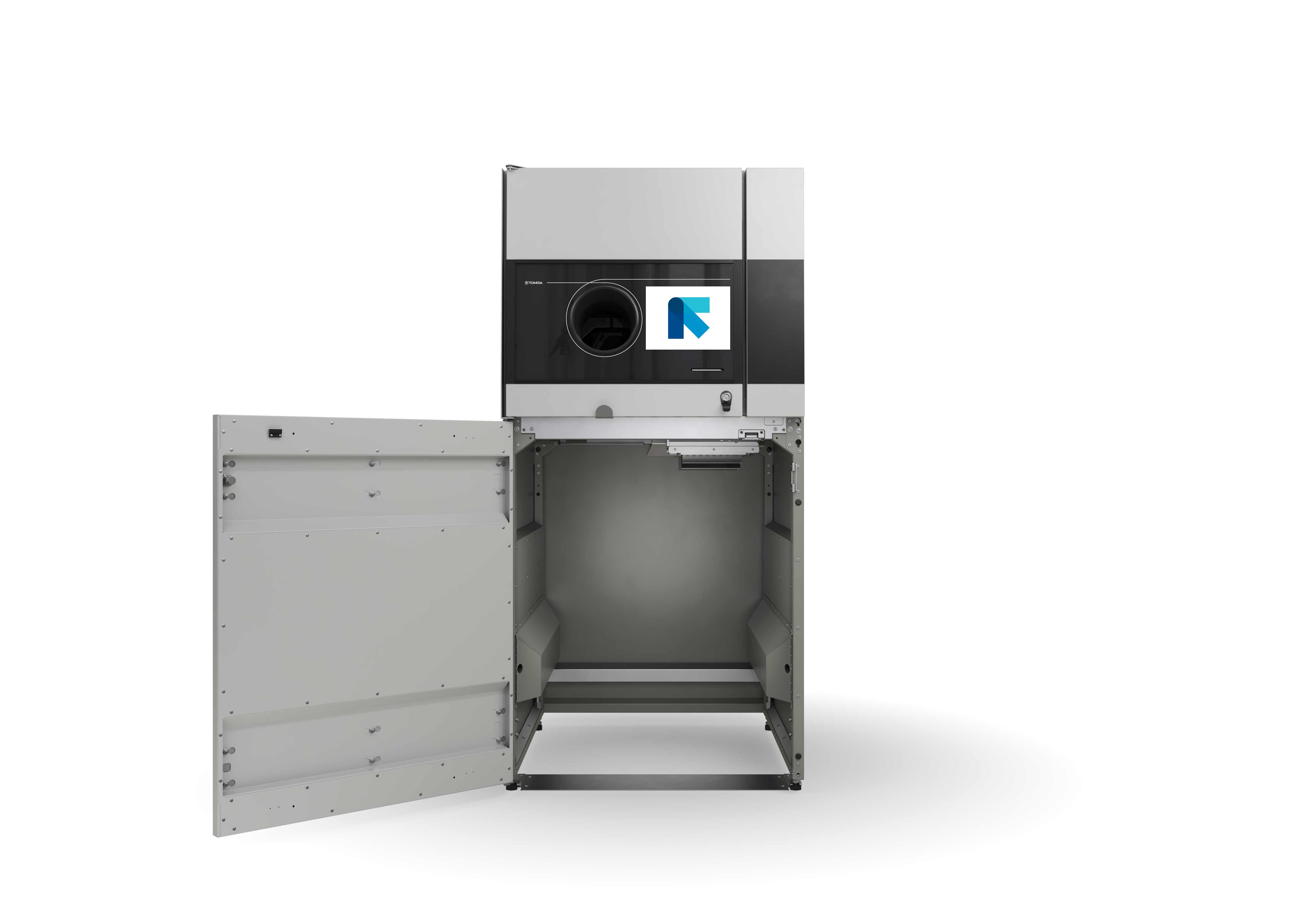

The T70 Single has multiple installation options - choose from front or rear unload and wall-mounted options for optimal use of your space.
