TOMRA T9 single feed reverse vending machine

Return. Rely. Repeat.
  • Accept cans
  • plastic bottles
  • glass bottles
  • and crates
  • Front machine
  • Up to 60 containers / 21 crates per minute
Details
Powered with TOMRA Flow™
Compatible with all TOMRA backrooms
Fully compatible with TOMRA's Digital Solutions
Specifications

Dimensions

Width (mm)
605 mm
Depth (mm)
667 mm
Height min (mm)
1704 mm
Height max (mm)
1942 mm
Height min-max (mm)
1704-1942
Footprint (m2)
0.4 m²
Weight (kg)
119 kg
Infeed height min (mm)
1310 mm
Infeed height max (mm)
1332 mm
Infeed height min-max (mm)
1310-1332
Adjustment range for height (mm) +25
38 mm
Width (mm)
605 mm
Depth (mm)
953 mm
Height min (mm)
1768 mm
Height max (mm)
1942 mm
Height min-max (mm)
1768-1942
Footprint (m2)
0.6 m²
Weight (kg)
200 kg
Infeed height min (mm)
1310 mm
Infeed height max (mm)
1332 mm
Infeed height min-max (mm)
1310-1332
Adjustment range for height (mm) +25
174 mm

Storage Capacity

Storage Capacity Plastic Bottles per bin (up to)
none
Storage Capacity Cans per bin (up to)
none
Storage Capacity Plastic Bottles per bin (up to)
none
Storage Capacity Cans per bin (up to)
none

Environmental

Humidity Max (%) Maximum 90% relative humidity, non-condensing
90 %
Temperature Min (C)
10 °C
Temperature Max (C)
40 °C
Temperature Min (C)
none °C
Temperature Max (C)
none °C
Humidity Max (%) Maximum 90% relative humidity, non-condensing
90 %
Temperature Min (C)
10 °C
Temperature Max (C)
40 °C
Temperature Min (C)
none °C
Temperature Max (C)
none °C

Electrical

Power Consumption Max (kW)
0.285 kW
Power Consumption Standby (kW)
0.045 kW
Mains Voltage (V)
230 V
Mains Frequency (Hz)
50 Hz
Mains Phase
single
Power Consumption Max (kW)
0.285 kW
Power Consumption Standby (kW)
0.055 kW
Mains Voltage (V)
230 V
Mains Frequency (Hz)
50 Hz
Mains Phase
single

Standard Configuration

Machine Type
consumer-facing
Additional Machine Type Configuration
none
Adjustment Hight Included
Yes
Bin Unload Direction
none
End of lane configurations
none
Number of Cabinets
none
Number of Bins per cabinet
none
Compactor Included
No
Available Colors
dark_grey, light_grey, red, black
User Interface
touchscreen, user_guiddance
Display Included
Yes
Display Type
touchscreen
User Interface
10.4’’ touch display with high brightness, suitable for direct sunlight exposure, video and sound capabilities, user guidance on machine screen
Display Size (inch)
10.4
Printer Included
Yes
Printer Type
thermal
Machine Type
consumer-facing
Additional Machine Type Configuration
none
Adjustment Hight Included
Yes
Bin Unload Direction
none
End of lane configurations
none
Number of Cabinets
none
Number of Bins per cabinet
none
Compactor Included
No
Available Colors
dark_grey, light_grey, red, black
User Interface
touchscreen, user_guiddance
Display Included
Yes
Display Type
touchscreen
User Interface
10.4’’ touch display with high brightness, suitable for direct sunlight exposure, video and sound capabilities, user guidance on machine screen
Display Size (inch)
10.4
Printer Included
Yes
Printer Type
thermal

Market

Available Countries
GLOBAL, AE, CZ, DK, GB, IE, ES, FI, IT, FR, NO, PT, SE, DE, AT, GR, HU, PL, RO, RS, TR
Placement Fit
supermarket, hypermarket
Available Countries
GLOBAL, AE, CZ, DK, GB, IE, ES, FI, IT, FR, NO, PT, SE, DE, AT, GR, HU, PL, RO, RS, TR
Placement Fit
supermarket, hypermarket

Recognition

Recognition Technology
TOMRA Flow Technology™ (360° recognition, barcode, metal detection)
Optional Features
Security mark recognition (market specific)
Speed Capability (up to containers/min)
60
Accepted Containers
plastic_bottles, aluminum_cans, refillable_bottles, glass_bottles
Recognition Technology
TOMRA Flow TechnologyTM (360° instant recognition, shape recognition, full container detection, barcode recognition, and metal detection). TOMRA True VisionTM (Crate and content detection)
Optional Features
Security mark recognition, full crate detector, crate color and logo detector
Speed Capability (up to containers/min)
60
Accepted Containers
plastic_bottles, aluminum_cans, refillable_bottles, glass_bottles, crates

Connectivity

External IT Interface
LAN (Ethernet TCP/IP), POS compatible
Digital Tools
Fully compatible with TOMRA’s portfolio of digital products and APIs
Backroom Integration Supported
Yes
Compatible backroom products
EasyPac, MultiPac and MultiPac Air
External IT Interface
LAN (Ethernet TCP/IP), POS compatible
Digital Tools
Fully compatible with TOMRA’s portfolio of digital products and APIs
Backroom Integration Supported
Yes
Compatible backroom products
EasyPac, MultiPac and MultiPac Air

TOMRA T9 - Return. Rely. Repeat.

Make it easy for your customers

TOMRA T9 offers a smooth, intuitive return process, accepting plastic bottles, cans, reusable glass and plastic bottles, and crates. The result is faster returns, shorter lines, and a better experience that encourages repeat visits.

Hassle-free maintenance

With fewer components and a guided cleaning program, TOMRA T9 is designed for quick and simple upkeep. Staff spend less time on maintenance and more time serving customers, while the system stays reliably up and running.

A continuous flow

TOMRA T9 delivers a fast, uninterrupted return experience powered by TOMRA Flow. Its 360° recognition captures every container instantly, keeping lines short and throughout high. TOMRA Flow supports flexibility as recycling schemes evolve, as recognition can be expanded to new container types.

Designed to fit your store

Built for your store, today and tomorrow. TOMRA T9 offers flexible customization, from user interface and exterior to backroom configuration, and integrates seamlessly with existing TOMRA backrooms and end-of-lane solutions.

Fullyconnected for a smarter experience

Fullyconnected for a smarter experience

Discover

TOMRA T9

Click to see every detail

Interested in TOMRA T9, or do you have questions?

Contact TOMRA

Get the brochure

Take the info away with you

Get the brochure
TitleDescriptionSize
TOMRA T9 Global product brochure EnglishDownload here3.21 Mb

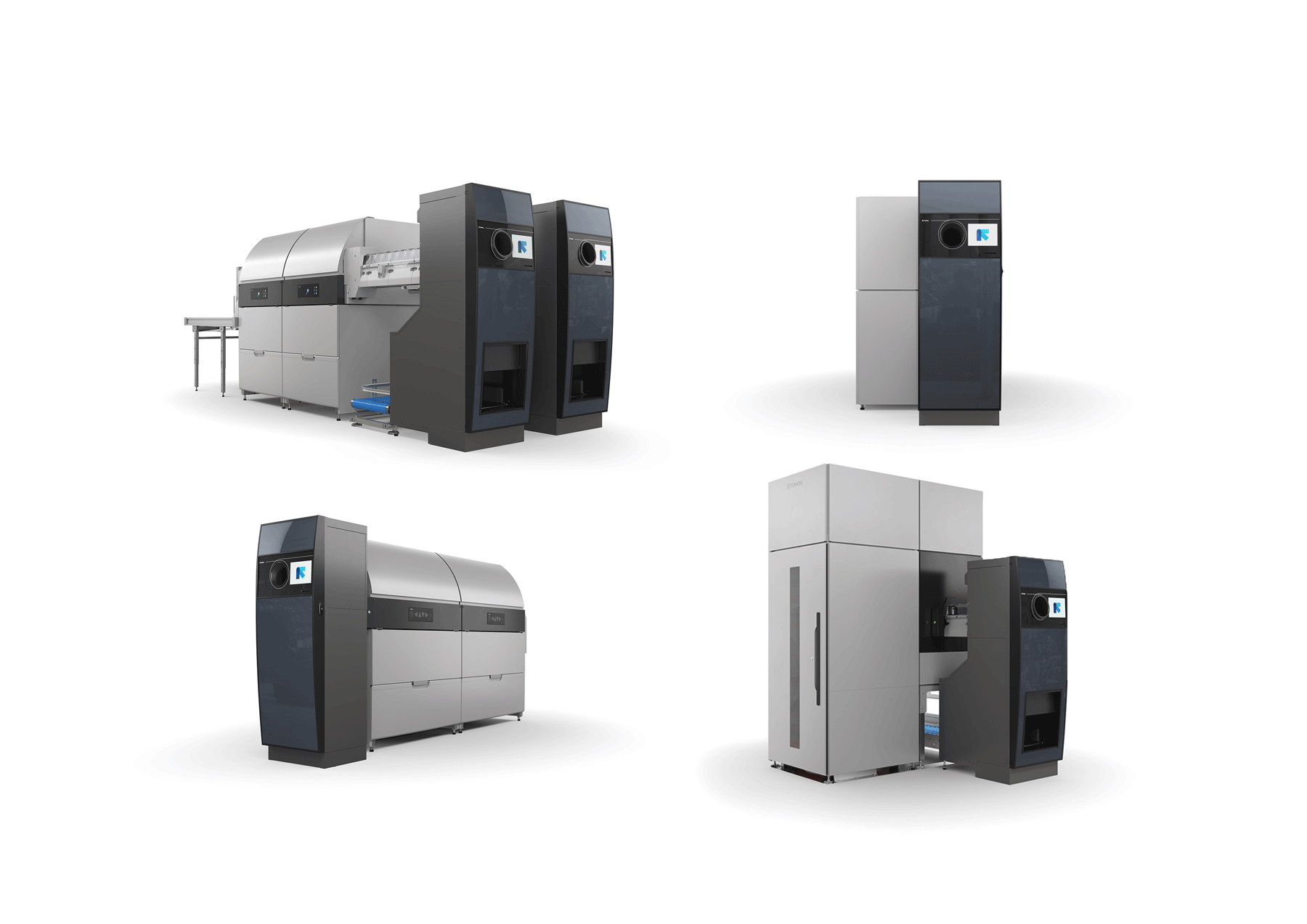

TOMRA T9 compatibility and flexibility

Connects to existing TOMRA backrooms and end-of-lane solutions

Digital Solutions & Service
