      TOMRA T90 reverse vending machine

      The all-in-one with more to store
      • Designed for medium to large stores
      • Accept cans
      • plastic bottles or glass bottles
      • Footprint of 2
      • 7m²
      • Up to 45 containers per minute
      Details
      Designed for medium to large stores
      Accept cans
      plastic bottles or glass bottles
      Up to 45 containers per minute
      Specifications

      Dimensions

      Width (mm)
      1878 mm
      Depth (mm)
      1454 mm
      Height min (mm)
      1773 mm
      Height max (mm)
      1773 mm
      Height min-max (mm)
      1773
      Footprint (m2)
      2.7 m²
      Weight (kg)
      525 kg
      Infeed height min (mm)
      1273 mm
      Infeed height max (mm)
      1273 mm
      Infeed height min-max (mm)
      1273
      Adjustment range for height (mm) +25
      80 mm

      Storage Capacity

      Storage Capacity Plastic Bottles per bin (up to)
      1600
      Storage Capacity Cans per bin (up to)
      6000

      Environmental

      Humidity Max (%) Maximum 90% relative humidity, non-condensing
      90 %
      Temperature Min (C)
      10 °C
      Temperature Max (C)
      40 °C
      Temperature Min (C)
      none °C
      Temperature Max (C)
      none °C

      Electrical

      Power Consumption Max (kW)
      2.5 kW
      Power Consumption Standby (kW)
      0.06 kW
      Mains Voltage (V)
      400 V 3 ph 50 Hz, 16 A fuse / 208 V 3 ph 60 Hz, 20 A fuse, C-characteristics (dedicated grounded mains supply) V
      Mains Frequency (Hz)
      50/62 Hz

      Standard Configuration

      Machine Type
      standalone
      Additional Machine Type Configuration
      wall-mount
      Adjustment Hight Included
      Yes
      Bin Unload Direction
      front, rear
      End of lane configurations
      none
      Number of Cabinets
      2
      Number of Bins per cabinet
      3
      Compactor Included
      Yes
      Compactor type
      For cans, PET bottles, can/PET mix, Glass bottles (drop or glass crush)
      Available Colors
      light_grey
      User Interface
      touchscreen, user_guiddance
      Display Included
      Yes
      Display Type
      touchscreen
      User Interface
      10.4’’ touch display, video and sound capabilities, user guidance on machine screen
      Display Size (inch)
      10.4
      Printer Included
      Yes
      Printer Type
      thermal

      Market

      Available Countries
      GLOBAL, AE, CZ, DK, GB, IE, ES, IT, FR, PT, SE, DE, AT, GR, HU, PL, RO, RS, TR
      Placement Fit
      supermarket

      Recognition

      Recognition Technology
      TOMRA Flow TechnologyTM (360º instant recognition, shape recognition, full container detection, barcode recognition, metal detection)
      Speed Capability (up to containers/min)
      45
      Accepted Containers
      plastic_bottles, aluminum_cans, refillable_bottles, glass_bottles

      Connectivity

      External IT Interface
      LAN (Ethernet TCP/IP), POS compatible
      Digital Tools
      Fully compatible with TOMRA’s portfolio of digital products and APIs
      Backroom Integration Supported
      No

      TOMRA T90 - The all-in-one with more to store

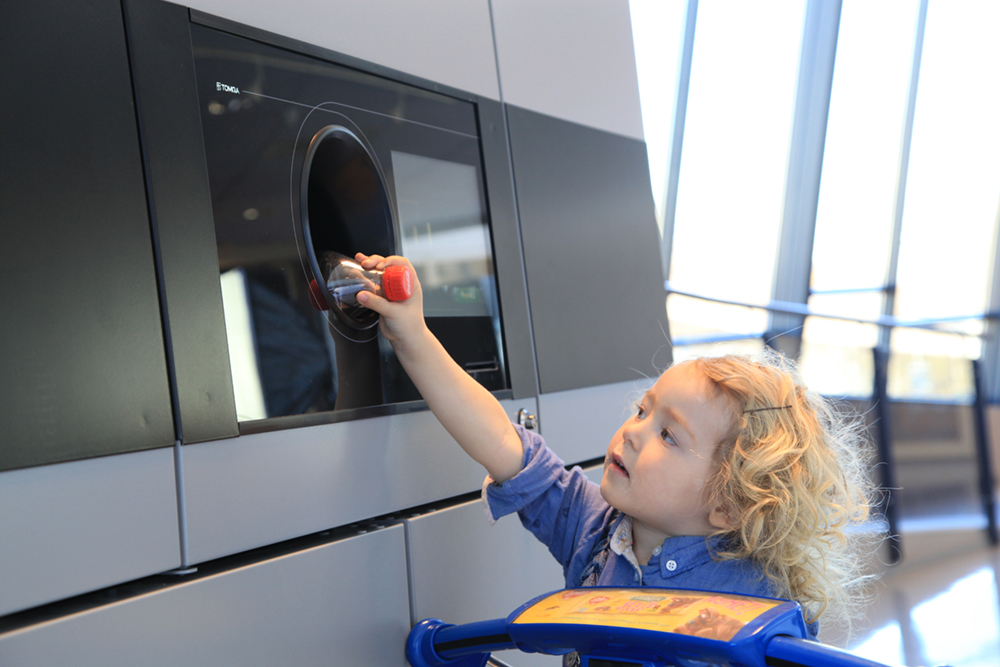

      Offer your customers a great recycling experience

      From the interactive user interface screen to fast and efficient container handling, powered by TOMRA Flow™ 360° recognition technology, you can give your customers every reason to love recycling at your store.

      Manage your peak volume with minimal maintenance

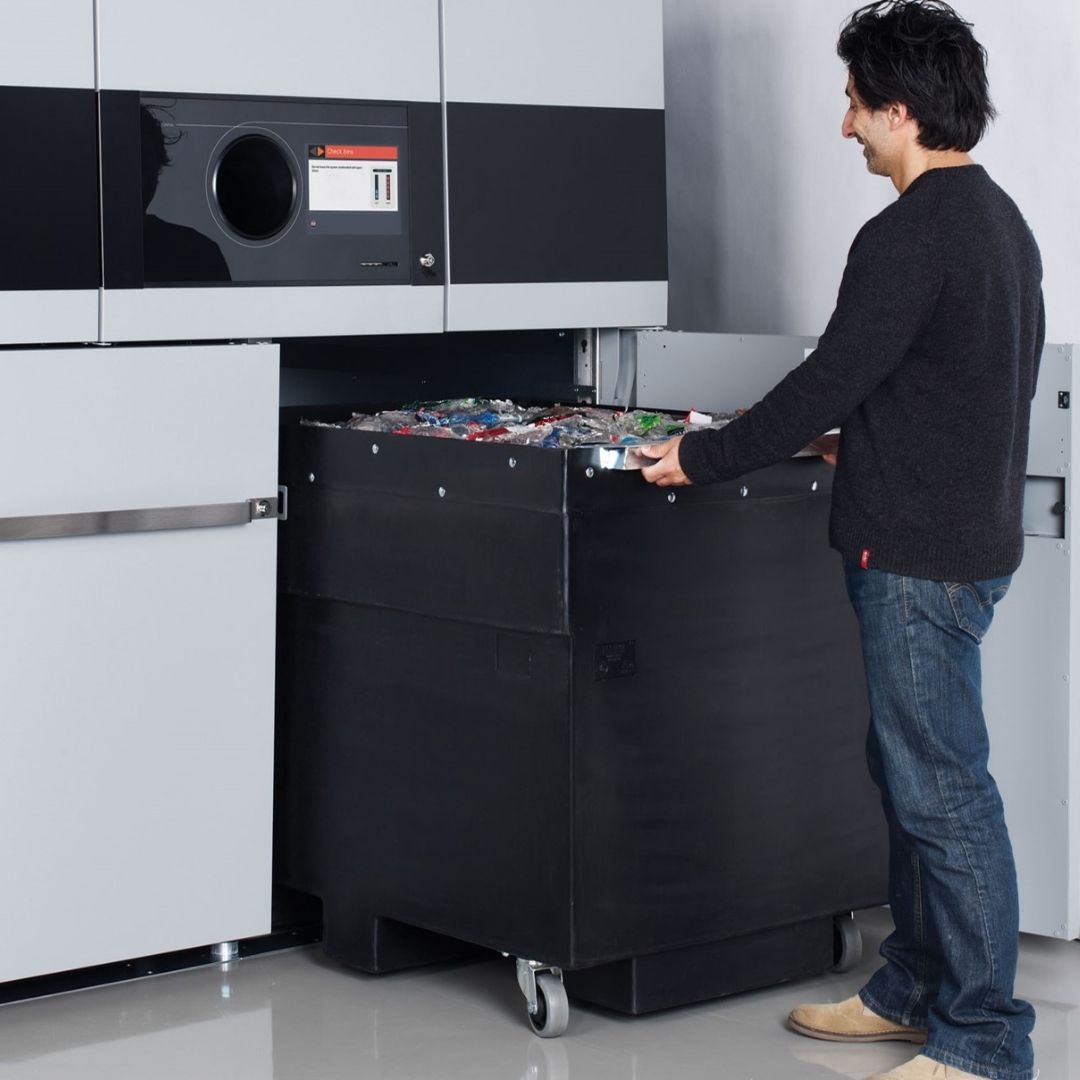

      Experience continuous operation even during peak hours. Two full-size bins allow you to collect a large number of drinks containers, so you can accept more containers before you need to empty a bin.

      An efficient and user-friendly all-in-one solution

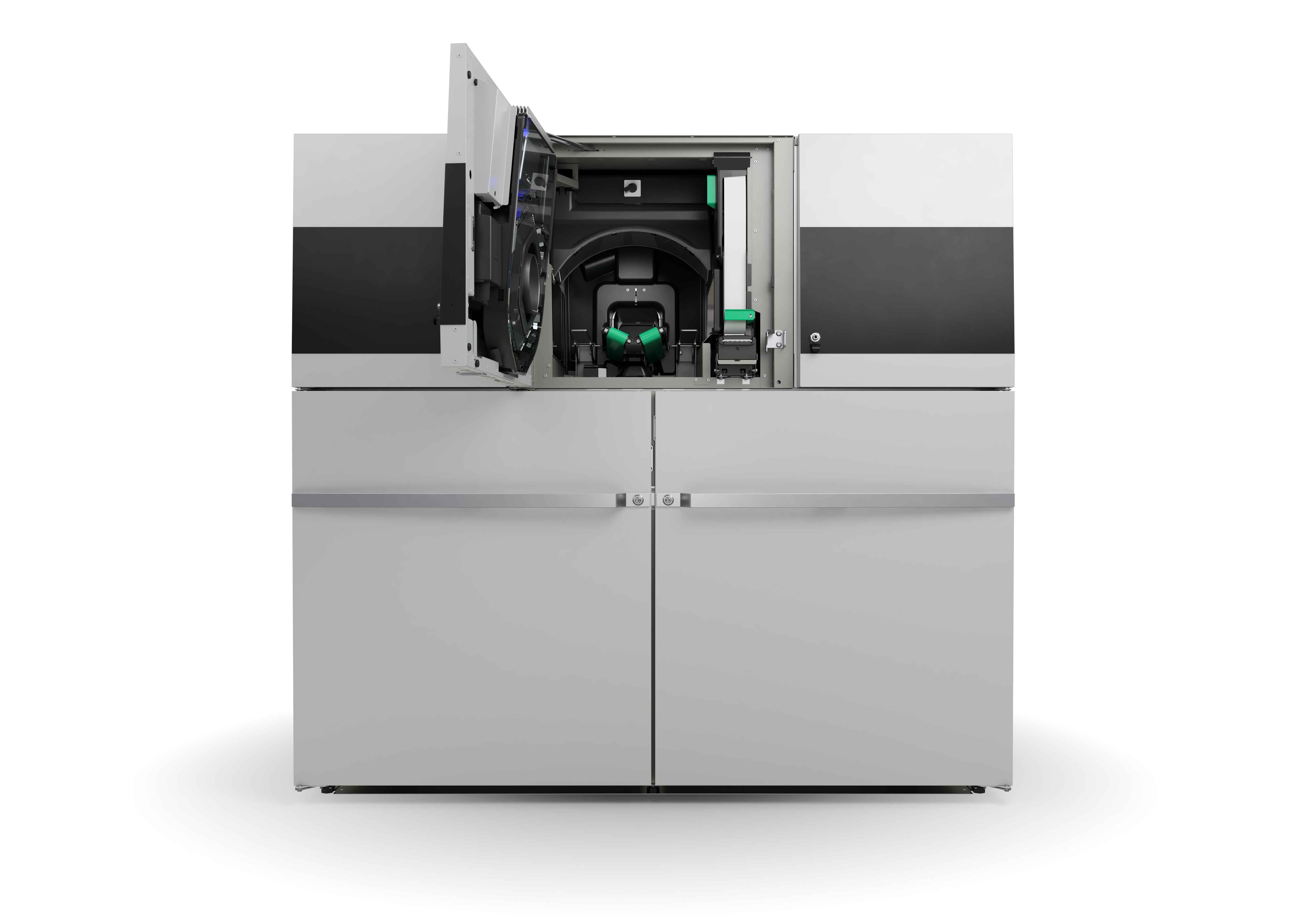

      Accept, sort, compact, and store up to three types of materials in one high-volume machine. The T90 is designed to be easy to clean, simple to empty, and seamless to operate.

      Make the most of your space

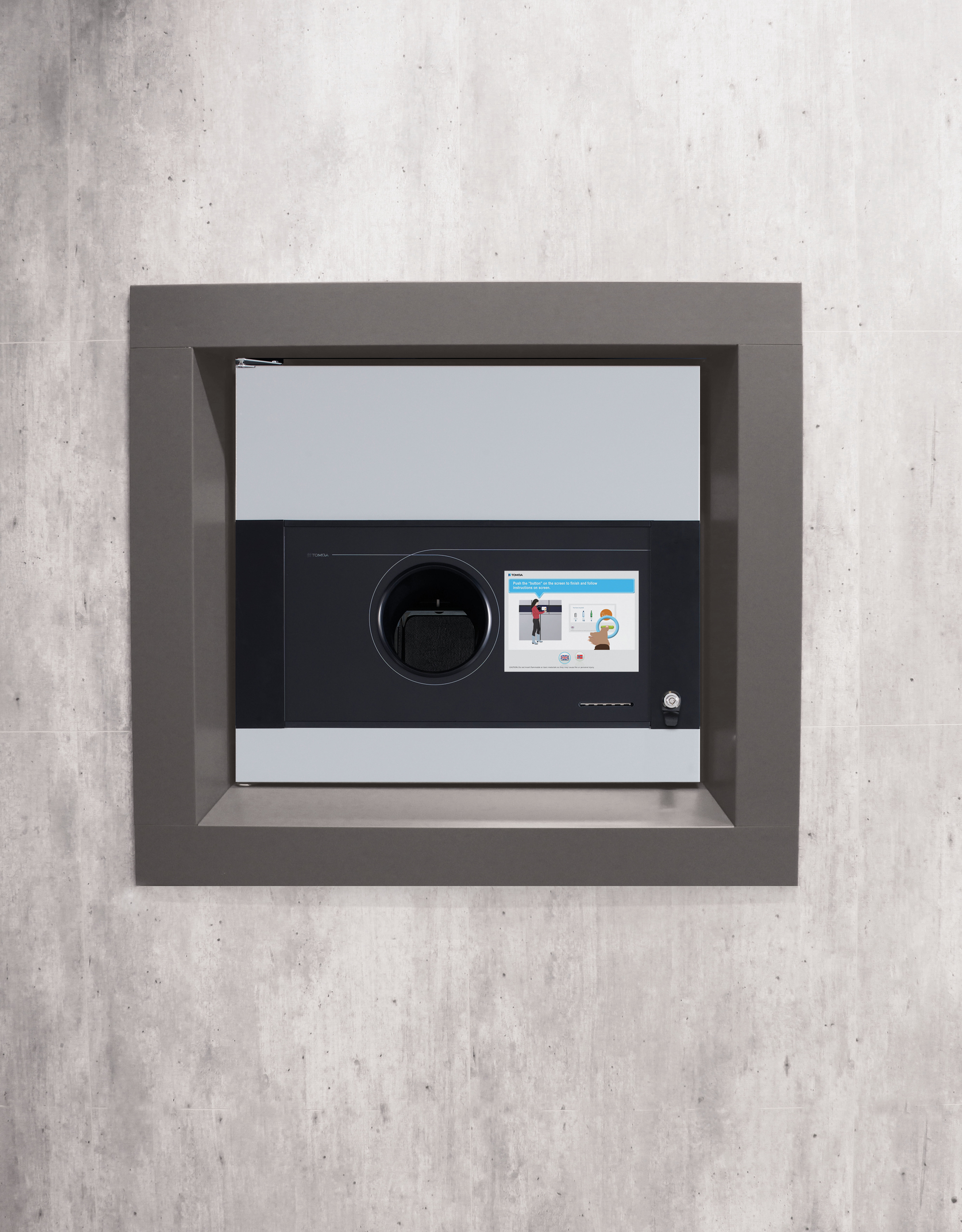

      Create a configuration that offers the best use of your floor plan and gives peace of mind to your personnel. Choose to empty bins from the front or the rear, install through a wall or even wrap the machine as your wish.

      discover t90

      Click to see every detail

      Interested in TOMRA T90, or do you have questions?

      Contact TOMRA

      Get the brochure

      Take the info away with you

      Get the brochure
      TitleDescriptionSize
      TOMRA T90 Global product brochure EnglishDownload here1.96 Mb

      Digital Solutions & Service

      Digital solutions

      Want to make the most out of your reverse vending? TOMRA’s Digital solutions and APIs make your recycling program work even harder for your store. Connect with your TOMRA reverse vending machine!

      EXPLORE TOMRA's DIGITAL OFFERINGs
      Jul 15, 2021

      Reverse vending service and support

      Ensure peace of mind for store colleagues. Our proactive, remote machine monitoring and network of field technicians keep your reverse vending equipment working hard for your business.
