TOMRA R2 reverse vending machine

Rethink recycling
  • Accepts cans
  • plastic and glass bottles
  • Modular system
  • No batch size
  • just continuous feed
Specifications

Dimensions

Width (mm)
950 mm
Depth (mm)
2100 mm
Height min (mm)
1800 mm
Height max (mm)
1940 mm
Height min-max (mm)
1800-1940
Footprint (m2)
2 m²
Weight (kg)
492 kg
Infeed height min (mm)
855 mm
Infeed height max (mm)
995 mm
Infeed height min-max (mm)
855-995
Adjustment range for height (mm) +25
140 mm

Storage Capacity

Storage Capacity Plastic Bottles per bin (up to)
2200
Storage Capacity Cans per bin (up to)
8000
50/50 mixed PET bottles/cans:
3000

Environmental

Humidity Max (%) Maximum 90% relative humidity, non-condensing
90 %
Temperature Min (C)
10 °C
Temperature Max (C)
40 °C
Temperature Min (C)
none °C
Temperature Max (C)
none °C

Electrical

Power Consumption Max (kW)
0.55 kW
Power Consumption Standby (kW)
0.08 kW
Mains Voltage (V)
TOMRA R2 with TOMRA EasyPac or TOMRA RollPac (Europe): 400 V AC, 3-phase w/ground, 50 Hz, 16 A fuse TOMRA R2 with TOMRA MultiPac 2 (Europe): 230 V AC, 1-phase w/ground, 50 Hz, 16 A fuse V
Mains Frequency (Hz)
50 Hz

Standard Configuration

Machine Type
wall_mounted
Additional Machine Type Configuration
none
Adjustment Hight Included
Yes
Bin Unload Direction
none
End of lane configurations
none
Number of Cabinets
none
Number of Bins per cabinet
none
Compactor Included
No
Available Colors
dark_grey

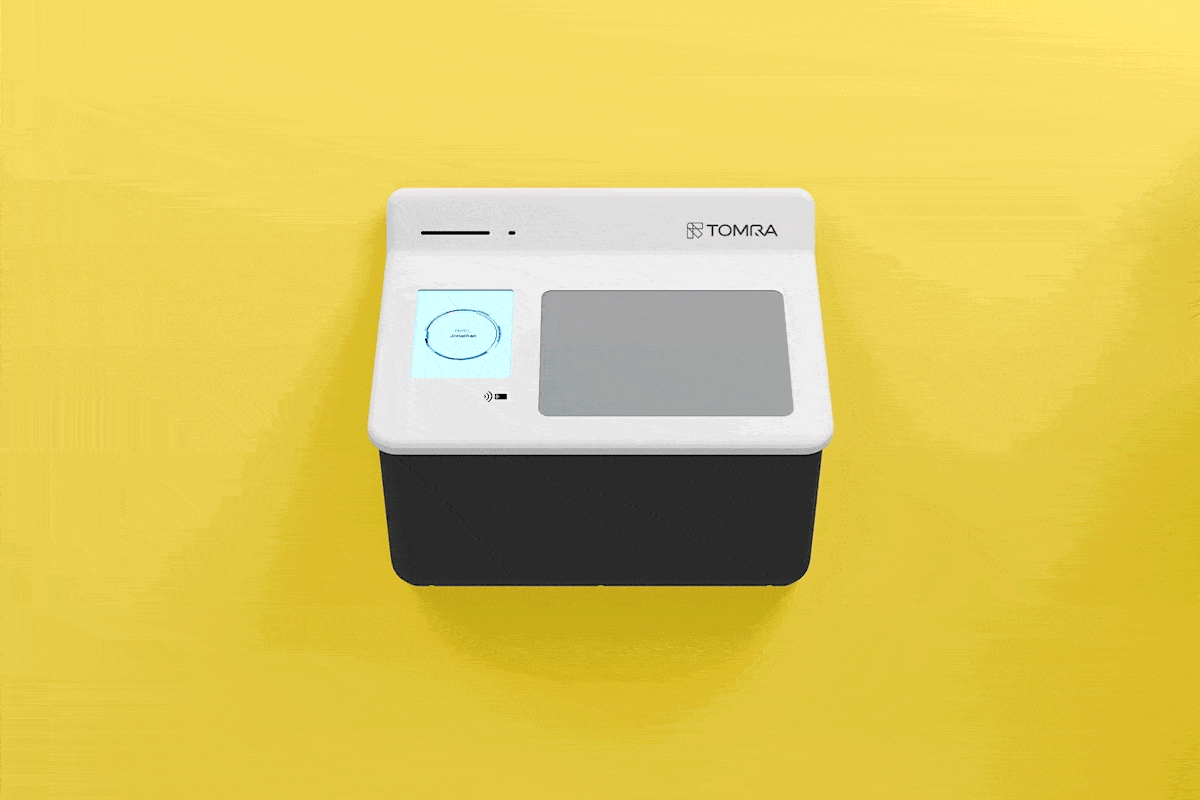

User Interface
touchscreen, user_guiddance
Display Included
Yes
Display Type
touchscreen
User Interface
Consumer-facing display: 10.4’’ touch display, video and sound capabilities, user guidance on machine screen Operator display: 10.4’’ touch display, video and sound capabilities, user guidance on machine screen
Display Size (inch)
10.4
Printer Type
thermal

Market

Available Countries
GLOBAL, AE, CZ, DK, GB, IE, ES, FI, IT, NO, PT, SE, DE, AT, GR, HU, PL, RO, RS
Placement Fit
supermarket, hypermarket

Recognition

Recognition Technology
TOMRA Flow TechnologyTM (360° instant recognition, shape recognition, full container detection, barcode recognition, and metal detection)
Optional Features
Loyalty reader. Security mark recognition (market specific)
Speed Capability (up to containers/min)
100
Accepted Containers
plastic_bottles, aluminum_cans, glass_bottles, mix, refillable bottles

Connectivity

External IT Interface
LAN (Ethernet TCP/IP), POS compatible
Digital Tools
Fully compatible with TOMRA’s portfolio of digital products and APIs
Backroom Integration Supported
Yes

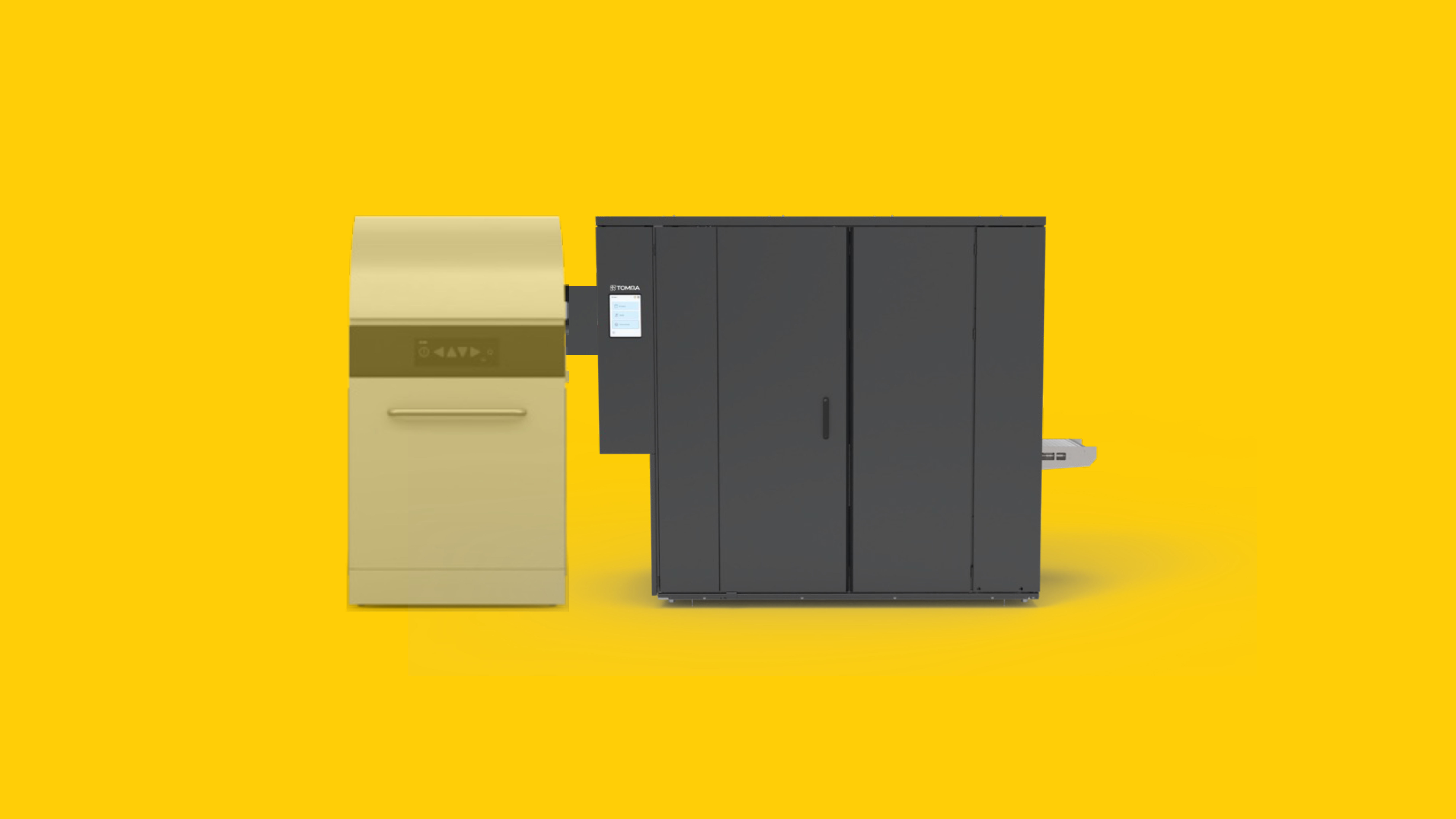

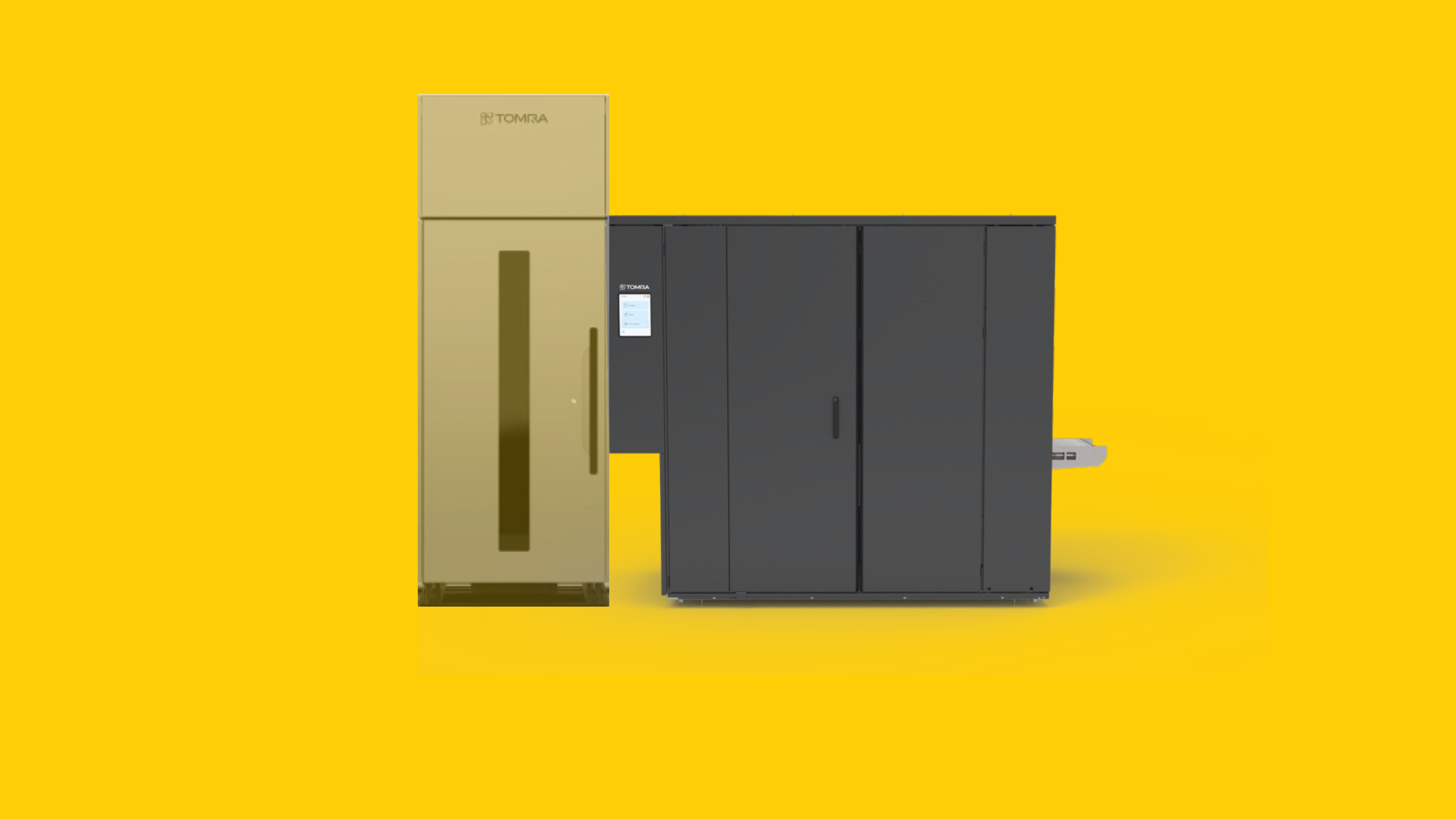

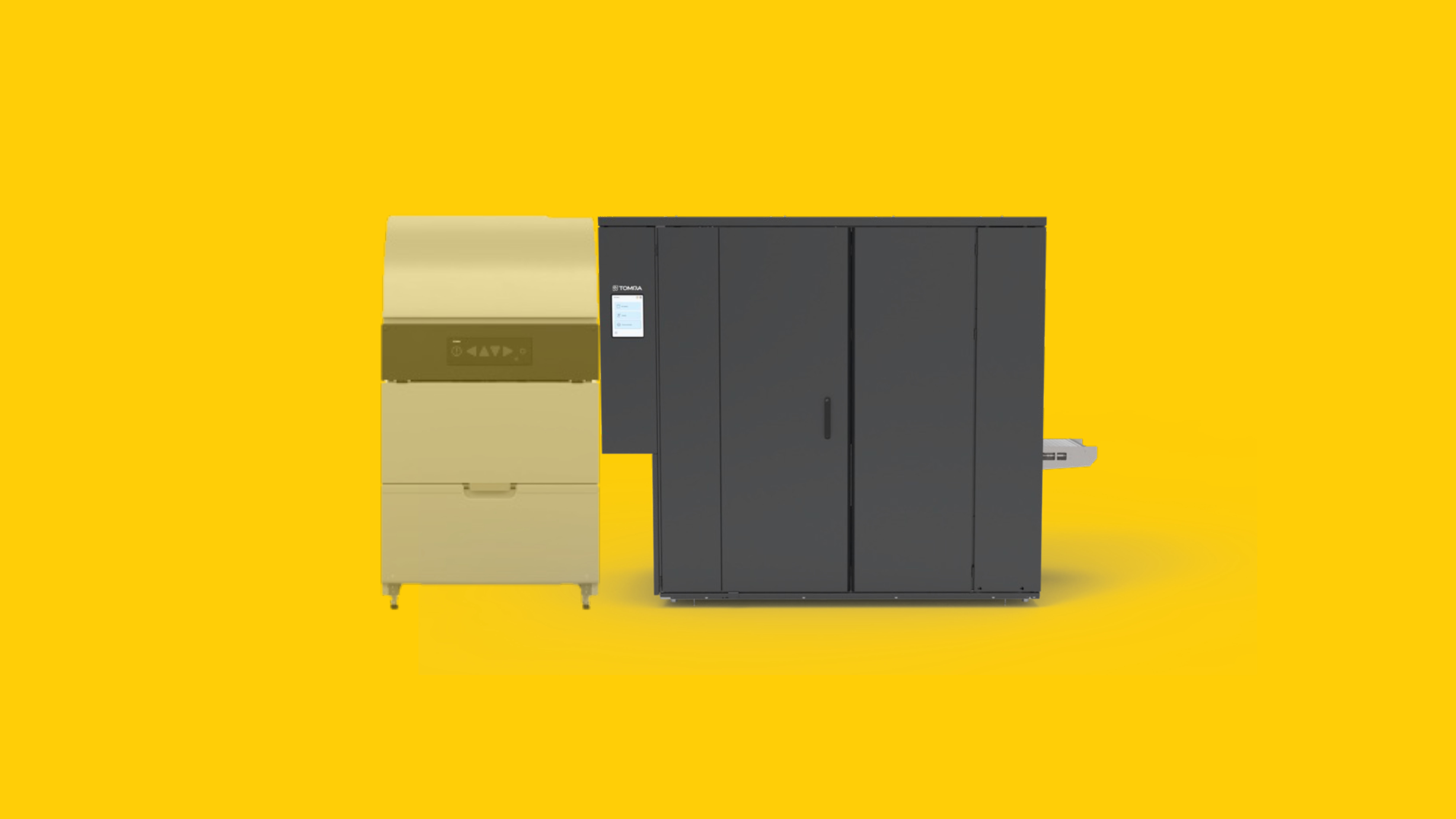

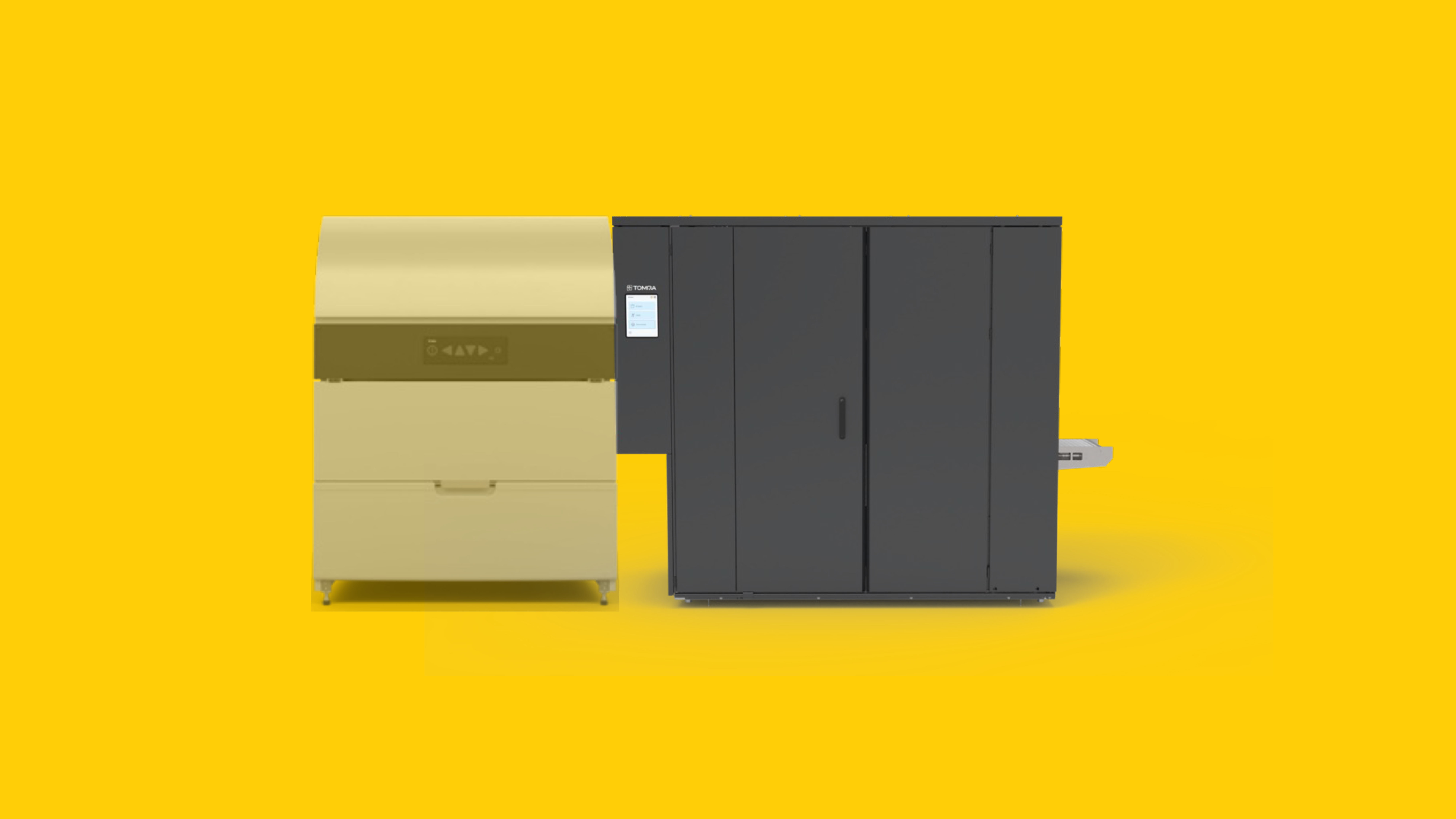

Compatible backroom products
TOMRA MultiPac, EasyPac Pro, RollPac and end-of-lane configuration kits

Rethink recycling with TOMRA R2

The big benefits of ​multi-feed now ​even for smaller stores

Embrace the new standard in container returns. The new TOMRA R2 wall-mount format and compact backroom minimize use of in-store space, so more stores than ever can reap the rewards of multi-feed reverse vending.

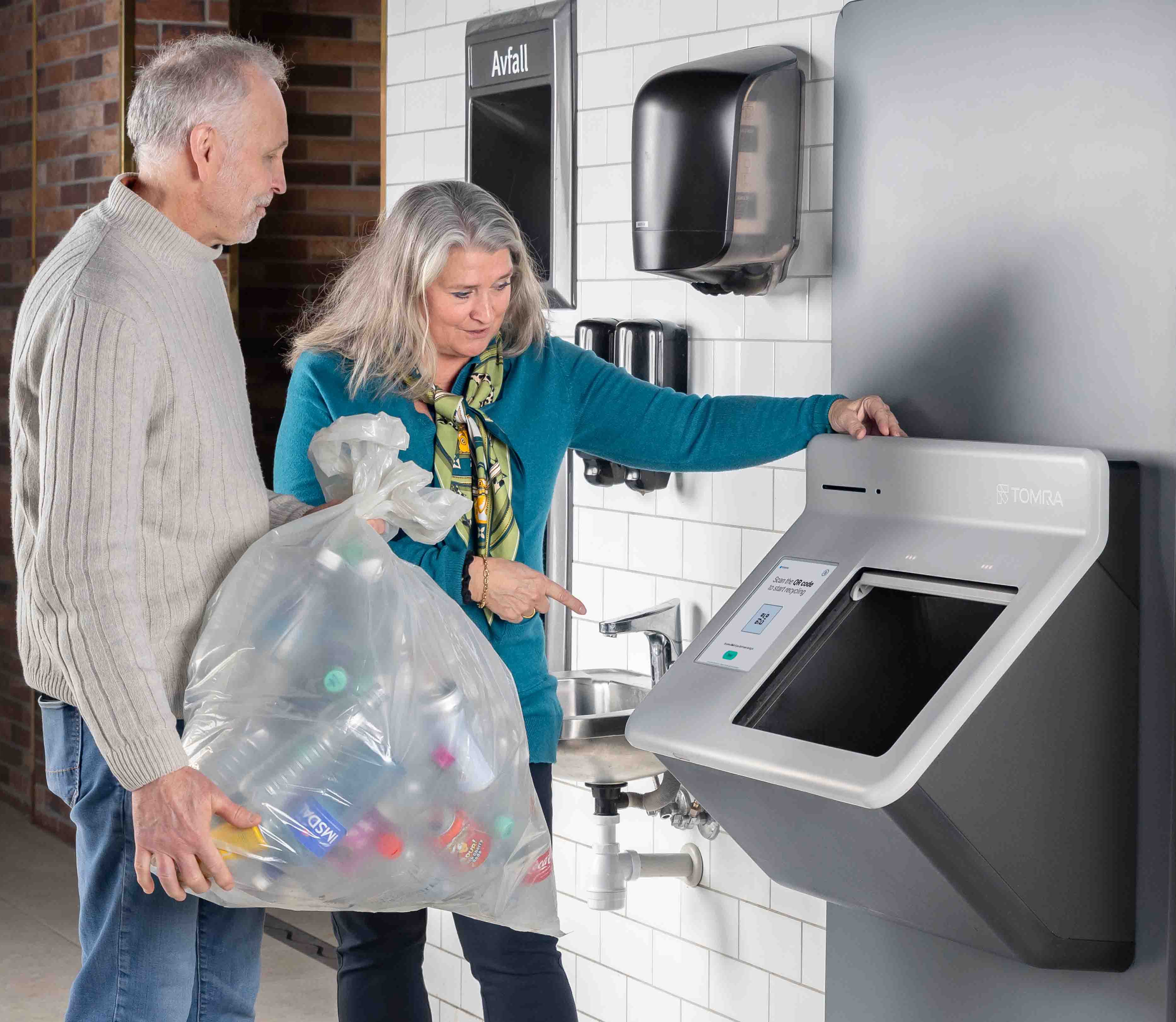

Say goodbye to sticky hands

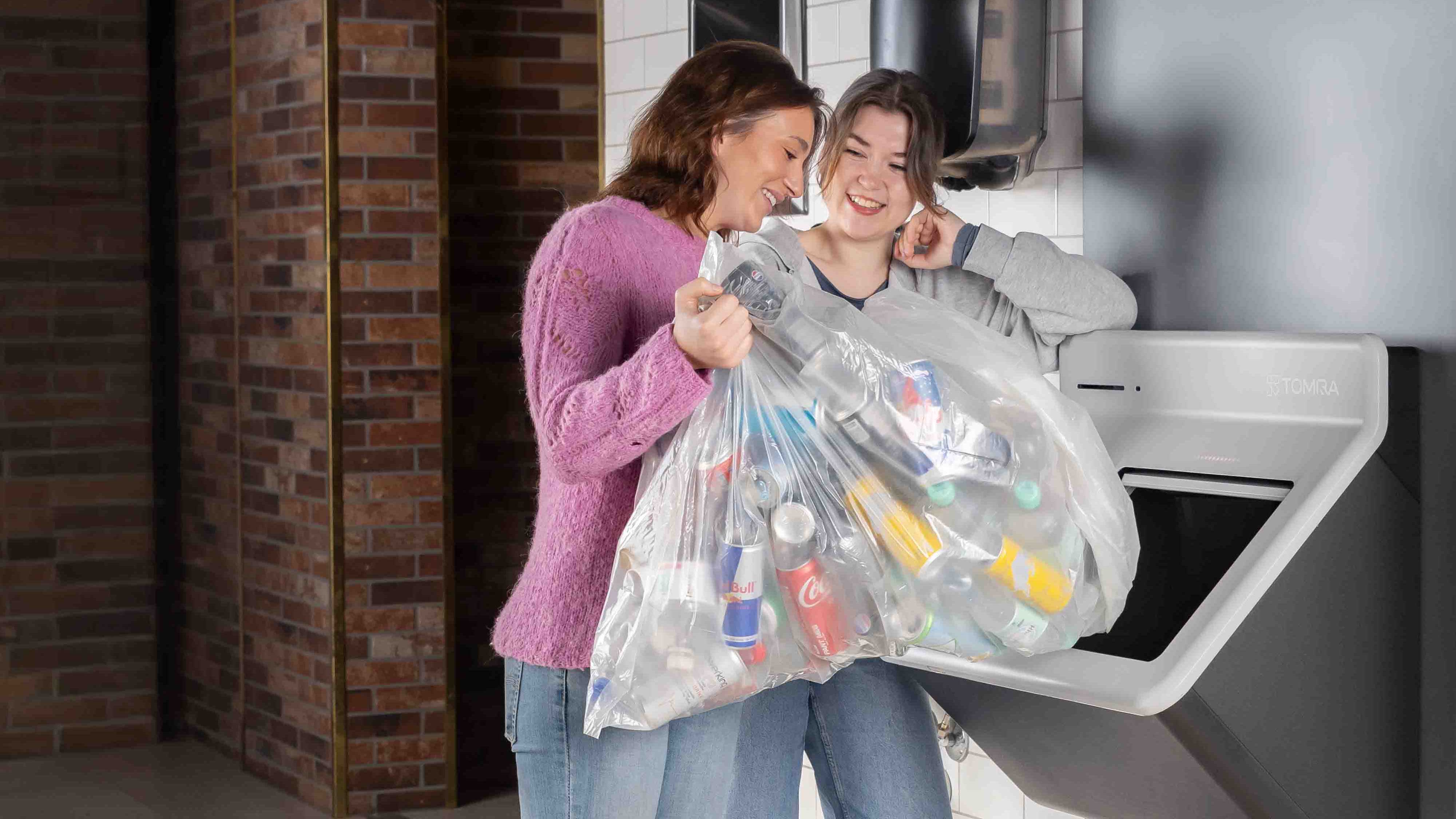

No mess and no sticky hands – just fast, simple, and convenient. The TOMRA R2 makes recycling feel effortless. No sorting, no fuss – pour cans, plastic and glass bottles in at once - bag after bag. No batch limit. With the drop and go function, there is no need to wait. When the bag is empty, customers just press the button and go shopping. A great all-round recycling experience creates loyal customers that keep coming back.

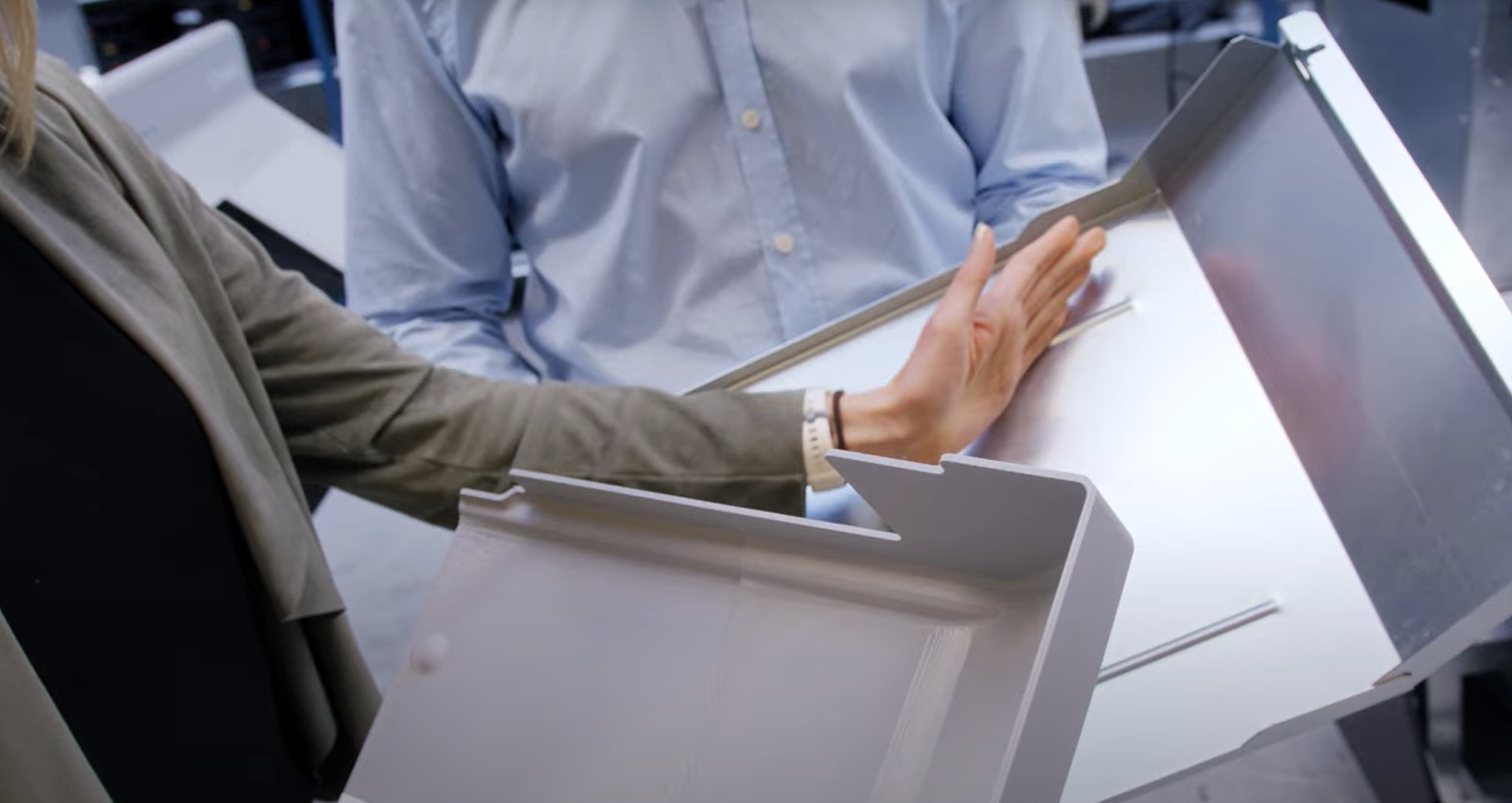

Optimize operations with efficiency and ease

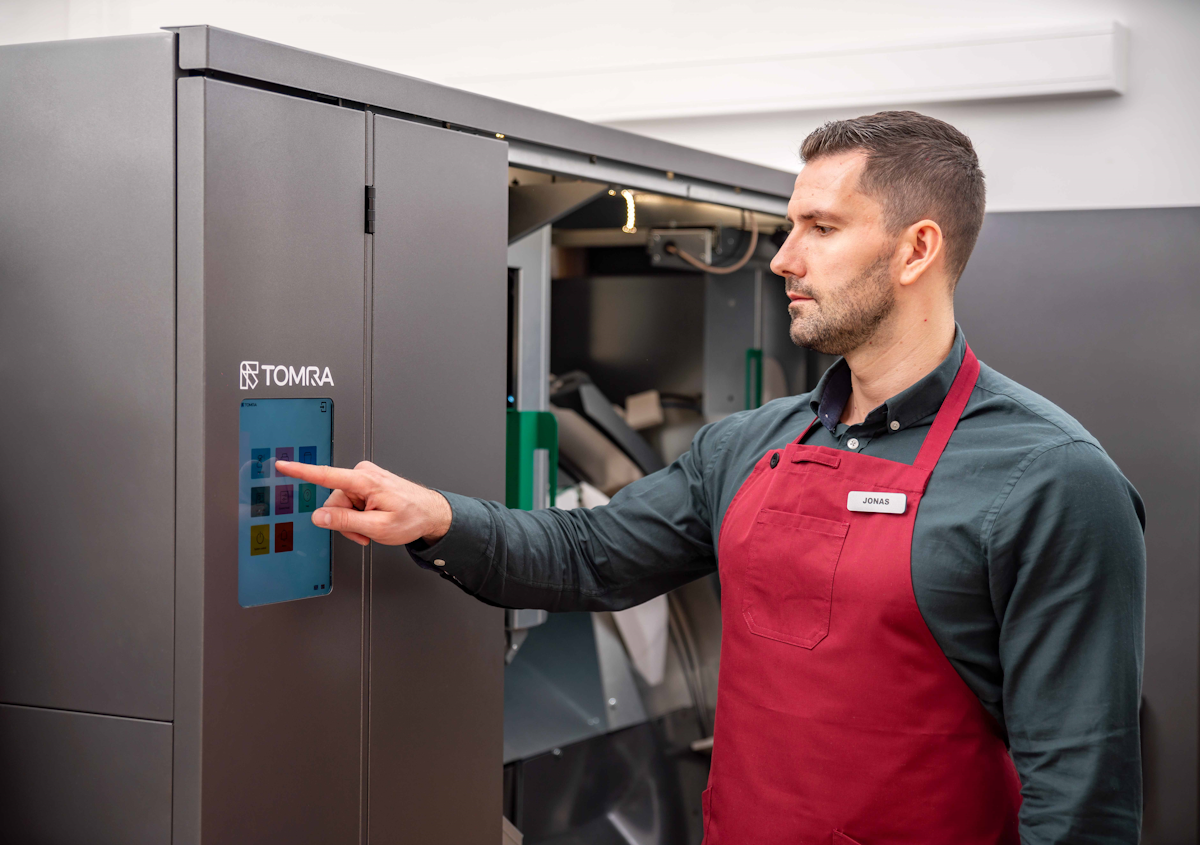

Perform tasks undisturbed and save time and effort walking back and forth, with access to cleaning, machine maintenance and troubleshooting, all from the backroom. Plus, pair your TOMRA R2 with TOMRA’s digital tools for the most convenient way to stay one step ahead of recycling management.

Designed with people in mind

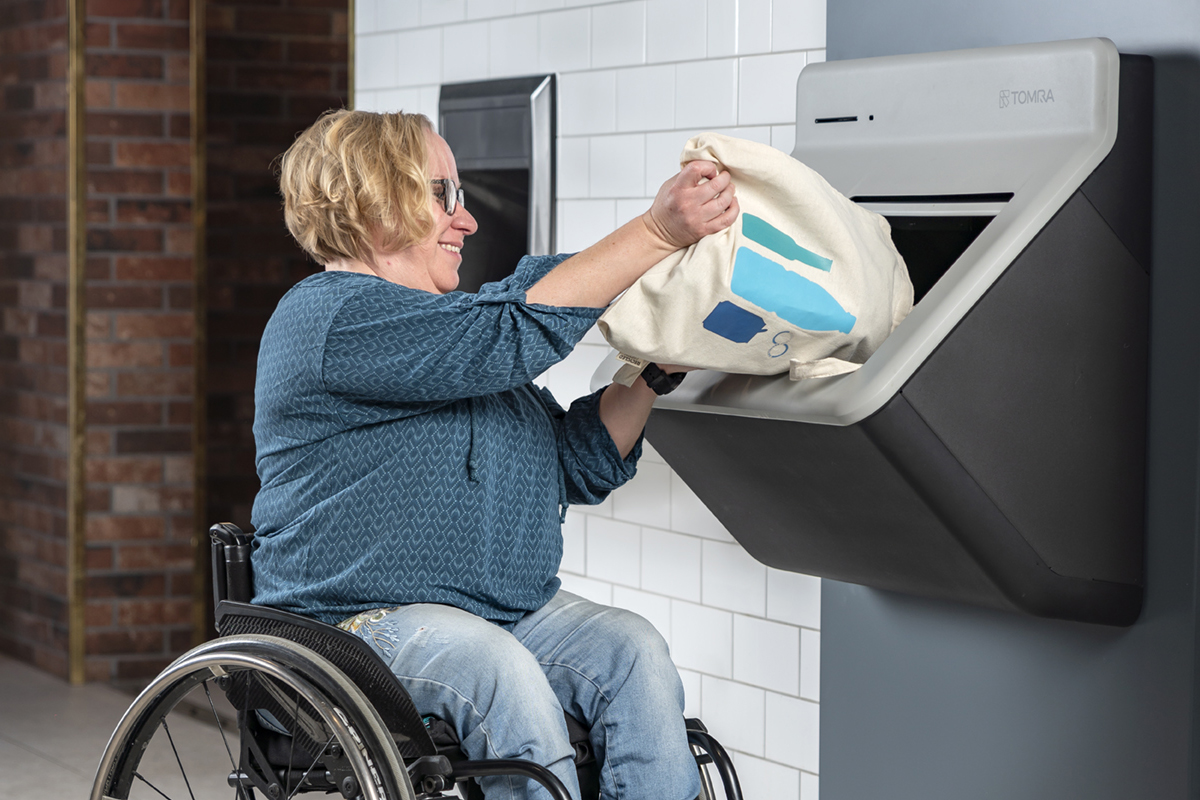

TOMRA R2 was designed with inclusivity in mind. With a lower in-feed and screen, and illuminated user guidance, every aspect is crafted to accommodate users of various abilities, ensuring that your customers can participate in recycling efforts without barriers.

Think of it as a smart investment for your store!

Grab customers’ attention and increase traffic

Experience* shows that customers are willing to go the extra mile to use a multi-feed vending machine. This ensures a great increase in drink container returns and an increase in traffic coming to the store.

A recent consumer survey* also shows that 87% of recycling consumers spend their deposit refund in the store toward their next grocery purchase, so recycling customers not only bring footfall to stores but also revenue.

*Source: “TOMRA R1 Consumer & Retailer insights”, 2021 and “How recycling habits impact shopping behavior”, 2023.

What do customers think about TOMRA R2?

We visited store manager Line Nordkvelde and her team at Coop Mega Lillehammer in Norway to hear what they and their customers think about their new TOMRA R2. Already after only a couple of months they have seen impressive results.

Everyday life has become easier for us and much more convenient for the customers

Innovation meets sustainability

With advanced technology and innovative design, TOMRA R2 stands out in the market. But today, innovation also means sustainability. Using insights from life cycle assessments conducted throughout product development, we've made decisions around material use, power consumption, and transportation to reduce TOMRA R2's overall environmental impact.

Read more

TOMRA R2 has been awarded the iF Design Gold Award 2026.

TOMRA R2 multi-feed reverse vending machine was recognized for its outstanding and inclusive design, intuitive user experience, and innovation in recycling technology. Combining high-performance bottle, can and glass returns with a compact, modern footprint, TOMRA R2 sets a new benchmark for efficient, consumer-friendly reverse vending solutions.

TOMRA R2 compatibility and flexibility

Pair the TOMRA R2 with your existing TOMRA solutions for a smart, future-proof investment. You can reuse your existing backroom solution and end-of-lane configuration kit and install it side by side with your existing single-feed reverse vending solution.
